ESP32 S3 WROOM 1 Development Board 2.4G Wifi BT Module BLE5.0 in Pakistan

Rs.1,800
SKU: B341
Availability : In Stock Pre order Out of stock
People are viewing this right now
sold in last hours

Description

ESP32 S3 Development Board

ESP32 S3  2.4G Wifi BT Module BLE5.0 Original -WROOM-1 N16R8 44Pin Type-C 8M PSRAM

The ESP 32-S3 is a low-power system-on-chip (SoC) that integrates 2.4GHz Wi-Fi and Bluetooth

Low Energy (Bluetosoo Le) dual-mode wireless communication.

The ESP 32-S3 has a complete Wi-Fi subsystem and Bluetooth Low Energy subsystem with industry-leading low power and RF performance. Supports a variety of low-power working states to meet the power requirements of various application scenarios. ESP 32-S3 chip provides rich peripheral interfaces and has a variety of unique hardware security mechanisms. The perfect security mechanism enables the chip to meet the strict security requirements.

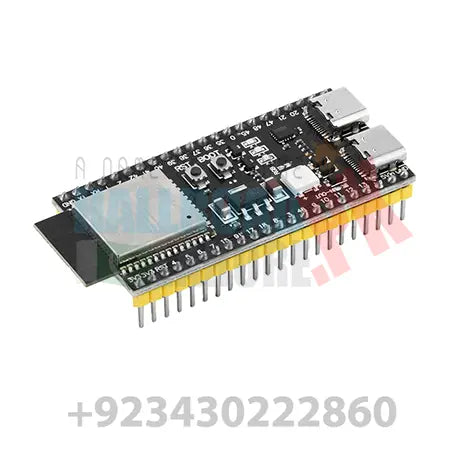

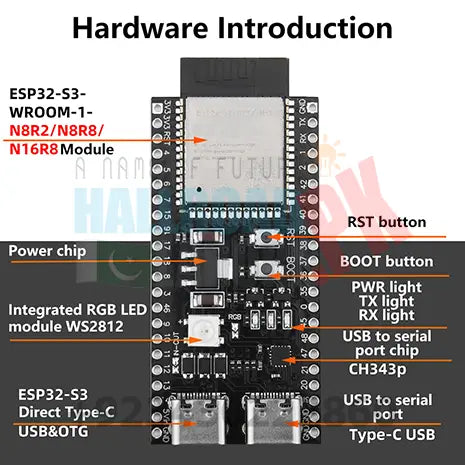

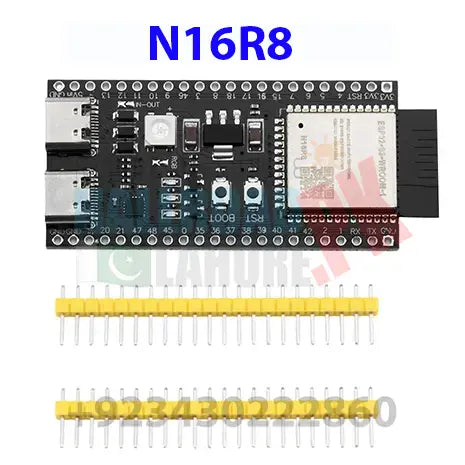

ESP32 S3 WROOM 1 Development Board.

Brand new and high quality The ESP32 S3 N16R8 is a must-have for tech enthusiasts and developers who want to take their projects to the next level.

Made of high-quality PCB material, this development board boasts excellent durability and reliability, ensuring stable performance over-time.

This board is for anyone who loves tinkering with technology, from hobbyists to professionals in the field of computer engineering and programming.

With its advance features and versatile capabilities, this development board is sure to become a go-to tool for any tech enthusiast looking to push the boundaries of what’s possible.

Features of ESP32 S3 WROOM-1:

  1. ESP32-S3 supports 2.4 GHz Wi Fi and BT 5 (LE) with powerful AI computing power and secure encryption mechanism
  2. N16R8 (16M external expansion flash/8M PSRAM)/AI IOT/dual Type-C USB port/W2812 rgb/high-speed USB to serial port
  3. This link can select N8R2/R16R8 products. This series is Backward compatibility in turn. Module programs with small storage specifications can be directly run on higher specifications without modification
  4. ESP32-S3 is an MCU chip that integrates 2.4 GHz Wi Fi and BT 5 (LE), supporting Long Range mode. The ESP32-S3 is equipped with an XtensaR32 bit LX7 dual core processor, with a main frequency of up to 240 MHz, built-in 512 KB SRAM (TCM), 45 programmable GPIO pins, and rich communication interfaces.
  5. ESP32-S3 supports larger capacity high-speed Octal SPL flash and off chip RAM, and supports user configured data caching and instruction caching.

Parameters of ESP32-S3-WROOM-1-N16R8:

  • Built in sram: 512K
  • Built in rom: 384K
  • External expansion PSRAM: 8M
  • External expansion flash: 16M

Specifications: Module model: ESP32-S3-DevKitC-1-N16R8:

  • Dual-core Xtensa LX7 CPU, up to 240 MHz, and supporting single-precision FPU
    • Added instructions to accelerate machine learning applications
  • 512 KiB SRAM, 384 KiB ROM, and 16 KiB RTC SRAM
  • Capable of connecting to external PSRAM and Flash via Quad SPI or Octal SPI, and share the same 32 MiB address space
  • Ultra-low power RISC-V (RV32IMC) coprocessor clocked at 17.5 MHz approximately
  • Ultra-low power FSM coprocessor similar to previous ESP32 and ESP32-S2
  • Wi-Fi 2.4 GHz (IEEE 802.11 b/g/n)
  • Bluetooth 5 (LE)
  • 45 programmable GPIOs
  • No integrated ethernet MAC
  • 2 × 12-bit SAR ADCs, up to 20 channels
  • USB OTG

Package Includes:

  • 1 x Development Board
  • 2 x Header
