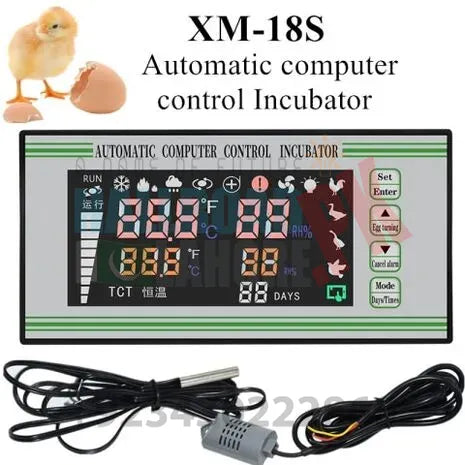

The new generation intelligent humiture incubator controller is a fuly-intelligent microcomputer control system designed and developed for incubation industry and it applies the latest microelectronic technology and new type components.It applies the microcomputer chips to have strong anti-interference and high stable performance; the temperature sensor applies the high precision sensor to have high temperature collection precision and wide temperature range;it applies high performance humidity sensor to high precision to effectively ensure the stableness and reliablity.
It has the design of user-friendly four screens for display including two screens displaying the temperature and humidity of incubator and other two screens displaying the egg turning times and incubation days by pressing the keys and displaying the preset temperature and humidity by pressing the keys.And five kinds of incubation modes for user-defintion,chicken,duck,goose and
pigeon are available for selection.
Main technical indexes:
1. Temperature display range:0~40.5℃
2. Temperature measurement precision:±0.1℃
3. Humidity display range:0-99%RH
4. Humidity control precision:±3%RH
5. Output lines:6 lines(primary heating,auxiary heating,exhaust(air exchange),turning left,turning right,humidify)
6. Output current :primary and auxiliary heating 30A,other output 10A
7. Egg turning times:maximum 999 tim
8. Egg turning cycle:0-999 minutes(default 90 minutes)
9. Egg turning period:0-999 seconds (default 180 seconds)
10. Air exchange cycle:0-999 minutes(defaut 120 minutes)
11. Air exchange period:0-999 seconds(defaut 15 seconds)
12.Length of measuring line:about 1.5 meters
Working conditions:
1. Working voltage:AC 180V~240V,50HZ
2. Relative humidity:less than 85%
3. Ambient temperature:-20℃~70℃
The incubation seting consists of automatic incubation and user defined incubation.
