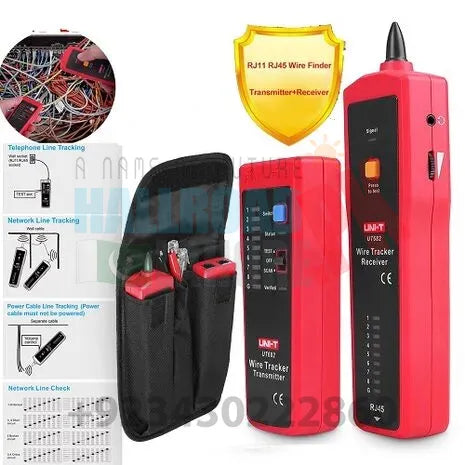

UNI T Wire Tracker Cable Tester UT682 consists of transmitter and receiver. This UT-682 line finder tracer has functions like telephone wire tracking, network wire tracking, cable wire tracking, network wire check, etc. This telephone phone wire finder has a fast and accurate measurement. The UT682 power cable wire tracer is an ideal tool for personnel to install and maintain low current systems such as communication wires and integrated circuits.
Features Of UNI-T UT682 Line finder Adapter Cable Tester Machine:
Telephone, ethernet, power cable tracking
DC level test can check voltage level and polarity
Ethernet cable wiring sequence verification
Fast open or short circuit test
Volume adjustment
Headset connection for noisy environment
Dual measurement cycle mode
Low battery indication
Specifications Of UNI-T UT-682 RJ11 RJ45 Wire Tracker Line Finder Telephone Wire Tracker Network Cable Tracer:
Wire tracking (LAN cable or telephone line or coaxial cable or electric wire): Yes
Live network switch tracking: Yes
Indication light for signal strength: Yes
Telephone lines tracking distance: ≥3000m
Unshielded cables tracking distance: ≥320m
Shielded cables tracking distance: ≥320m
Video cable tracking distance: ≥100m
Open and short circuit test: Yes
Polarity indication for telephone lines (DCV function, range: ±(5V~52V)): Yes
Telephone lines and LAN cables distinction (jacks distinction): Yes
Broken point finding (totally open circuit): Yes
The voltage of the transmitter output signal: ≥12V Peak-Peak
Transmitter audio modes: Fast or slow
Transmitter low battery indication (Line sequence indication light is on.): Around ≤6.6V
Receiver low battery indication (Power indication light flashes.): Around ≤6.6V
Transmitter power supply: 9V (Layer-built battery)
Max transmitter working current: 25mA
Headphone jack for receiver: Yes
Receiver power supply: 9V (Layer-built battery)
Max receiver standby current (when pressing 'Press to test' key and no wire is found): Around 10mA
Max receiver operating current (when pressing the 'Press to test' key, some wire is found and the volume is adjusted to the maximum): ＜40mA (AC, RMS)
Line sequence measurement: 9 LED (LED1~LED8, LED_G) indication lights
Line sequence measuring speed (fast and slow selectable): Yes
LAN cable: Shielded/unshielded indication: Yes
Transmitter input voltage protection: 52V DC
Operating temperature: -10~50℃
Storage temperature: -10~50℃
Operating humidity: 20~75%RH
Storage humidity: 10~90%RH
Altitude: ≤2000m
Product color: Red and grey
Product weight transmitter: 125g
Product weight receiver: 153g
Product size transmitter: 125 X 48 X 28mm; Receiver: 195 X 48 X 30mm
Telephone Line Tracking Function:
Connect the telephone line head into the transmitter’s RJ11 interface;
Press the transmitter functional select switch to the “TEST” position. Line tracking indicator “Status” will flask, which indicates that the transmitter works properly;
Hold down the receiver “Press to test” button and look for the target cable with the receiver probe.
During the testing, light press the “Switch” button to switch between single and double audio test patterns.
Network Line Tracking Function:
The network line with a crystal head into the transmitter RJ45 interface;
Press the transmitter functional select switch to the “TEST” position, Line tracking indicator “Status” will flash, which indicates that the transmitter works properly;
Hold down the receiver “Press to test” button and look for the target cable with the receiver probe.
During the testing, light press the “Switch” button to switch between single and double audio test patterns.
Power Cable Line Tracking Function (Power cable must not be powered):
Connecting the transmitter with the metal cable using alligator clip adapter wiring;
Adjust the transmitter functional select switch to the “TEST” position, line tracking indicator “Status” will flash, which indicates that the transmitter works properly;
Hold down the receiver “Press to test” button and look for the target cable with the receiver probe.
During the testing, light press the “Switch” button to switch between single and double audio test patterns.
Package Includes:
1 x UNI-T UT682 Transmitter
1 x UNI-T UT682 Receiver
1 x RJ11 Adapter Cable
1 x RJ45 Adapter Cable
1 x Crocodile Clip Adapter Cable
1 x Cloth Bag
1 x English User Manual
