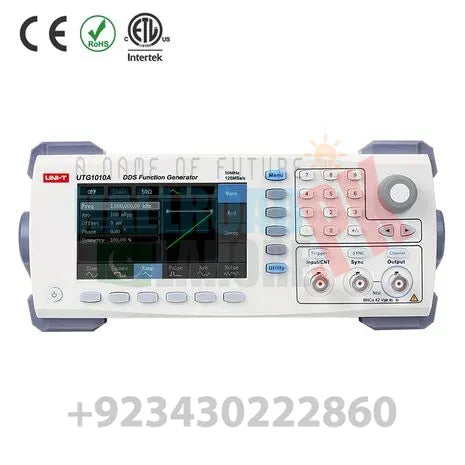

UTG1000A function/arbitrary waveform generators adopt direct digital synthesis technology to produce accurate and stable waveform output with 1Hz resolution. Modulations such as AM, PM, FM, ASK, FSK etc. with internal or external source, linear and logarithmic sweeps and USB interface are available. The panel is ergonomically constructed for simple operation.
Applications:
Designing, testing, troubleshooting, and repairing of electronic and electroacoustic devices, such as circuit and equipment testing in cellular and wireless systems, broadcasting, television and radio systems; semiconductor component testing etc.
Features:
1. Intuitive interface design2. Single channel
3. 125MS/s sampling rate, 14-bit vertical resolution
4. Integrated analog and digital design
5. 4.3 inches TFT LCD
Technical specifications:
Specifications | |
Model | UTG1010A |
Channel | 1 |
Sampling rate | 125MS/s |
Output frequency | 10MHz |
Frequency Characteristics | |
Sine | 1μHz~10MHz |
Square | 1μHz~5MHz |
Ramp | 1μHz~400kHz |
Pulse | 1μHz~5MHz |
Arbitrary | 1μHz~2MHz |
Resolution | 1μHz |
Accuracy | Within 90 days ± 50ppm |
Within 1 year ± 100ppm | |
18℃~28℃ | |
Arbitrary Waveform | |
Vertical resolution | 14 bits |
Max. memory depth | 16 sets of arbitrary waveforms |
Others | |
Output standard waveform | Sine, square, ramp, triangle, pulse, noise, DC, arbitrary |
Output amplitude range | 1mVpp~10Vpp (50Ω); 2mVpp~20Vpp (High Z) |
Modulation types | AM, FM, PM, PWM, ASK, FSK, PSK |
Interface | USB Device |
General Characteristics | |
Power | 100~240V AC, 50Hz/60Hz |
Display | 4.3 inches TFT LCD, WVGA (480 x 272) |
Product color | White and grey |
Product net weight | 3.2kg |
Product size | 165mm x 110mm x 320mm |
Standard accessories | USB interface cable, power cord, BNC-BNC cable |
Standard individual packing | Carton box |
Package:
1 x UTG1010A UNI T 10MHz DDS Function Generator
