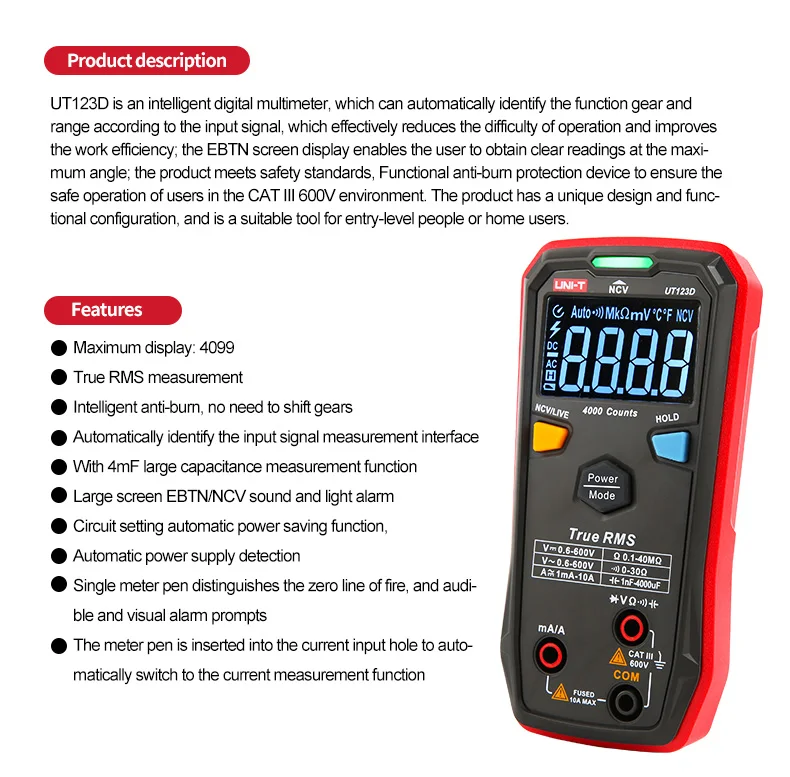

UT123D smart digital multimeter is designed to automatically identify AC/DC voltage, resistance, diode, and continuity. With the press of one button, all measurement modes can be manually selected including capacitance. The compact design and EBTN display makes it a great tool for home, DIY, and working in dark environments.
Features:
● True RMS
● NCV/Live
● Low Battery Indication: ≤2.7V
● Data Hold
● Auto Power Off
● Acousto-optic indication: NCV/continuity/battery power

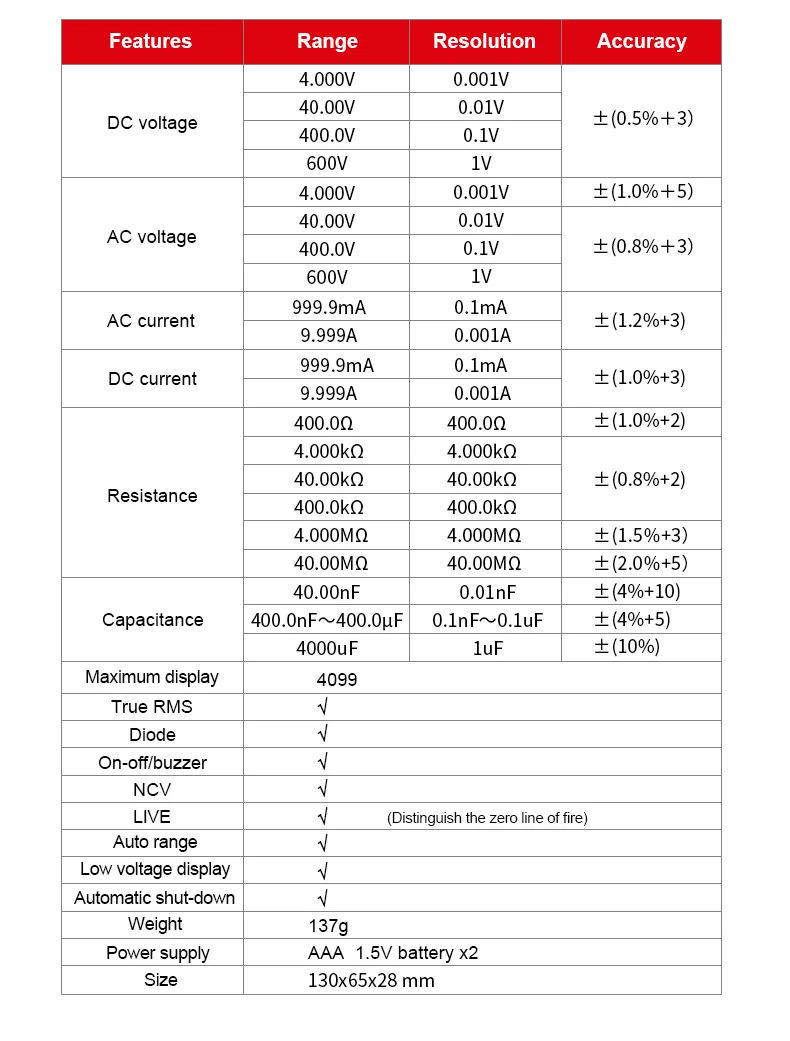

UT123D Digital Smart Multimeter Specifications:
Specifications |
Range |
UT123D |
Certifications |
CE, RoHS |
|
Category ratings |
CAT III 600V |
|
DC voltage (V) |
600V |
±(0.5%+3) |
AC voltage (V) |
600V |
±(0.8%+3) |
DC Current (A) |
10A |
±(1%+3) |
AC Current (A) |
10A |
±(1.2%+3) |
Resistance (Ω) |
40MΩ |
±(0.8%+2) |
Capacitance (F) |
4000μF |
±(4%+5) |
General Characteristics | ||
Power |
1.5V battery (R03) x 2 (No include) |
|
Display |
44mm x 26mm |
|
Product net weight |
130g |
|
Product size |
130mm x 65mm x 28mm |
|
Standard accessories |
English manual |
|
Standard individual packing |
Gift box |

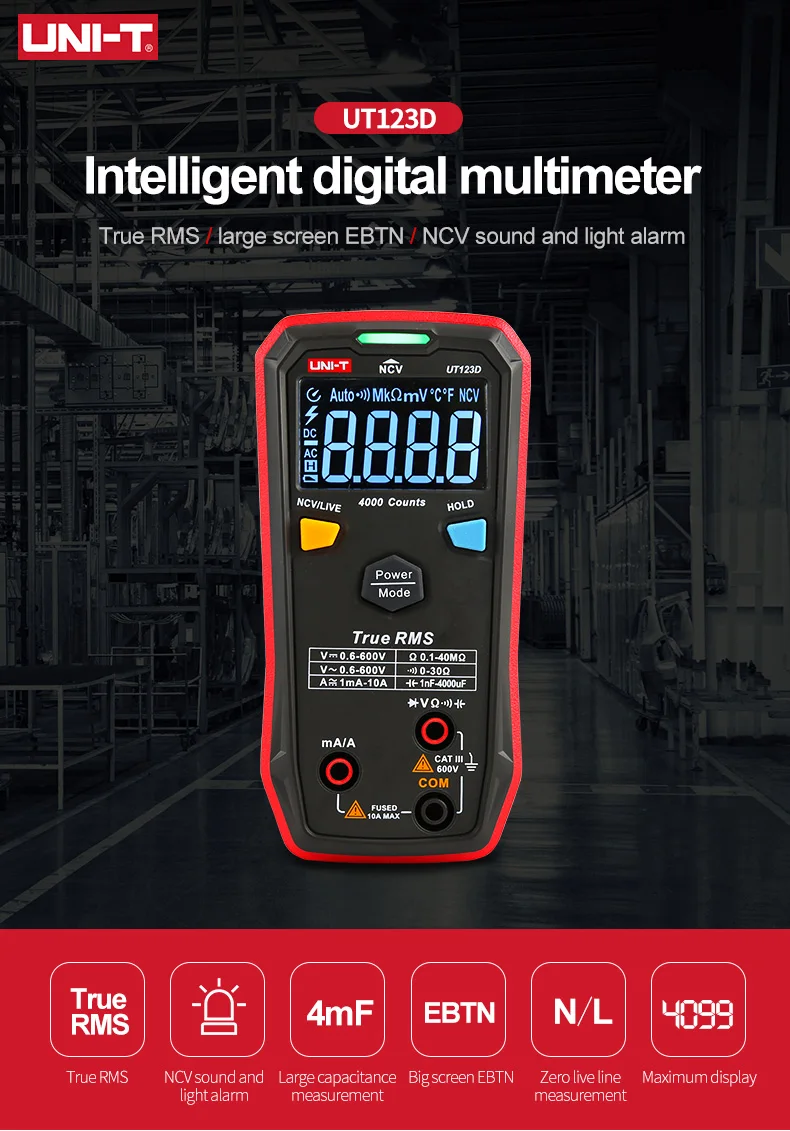

Intelligent digital multimeter
True RMS/Iarge screen EBTN/NCV sound light alarm
We also have UT123 Digital Smart Multimeter in Pakistan

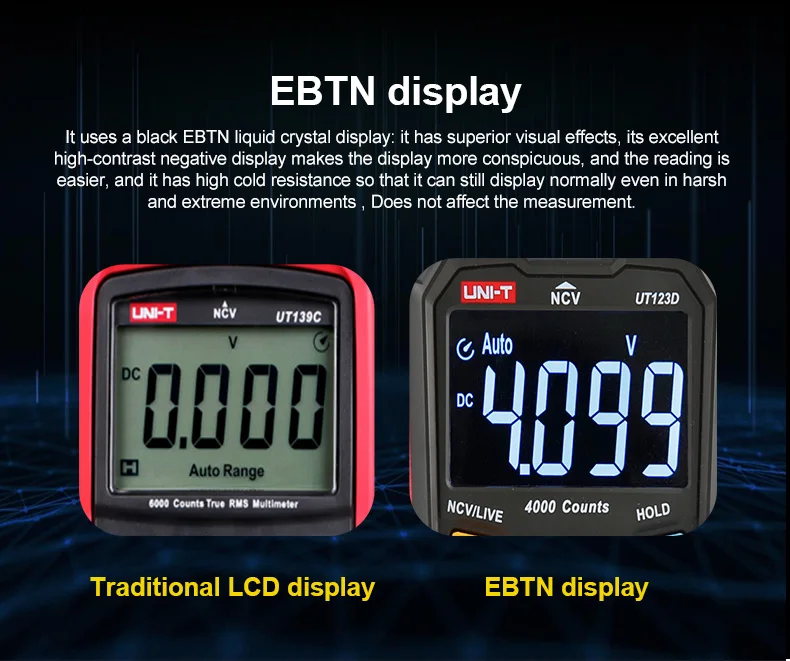

EBNT display
It uses a black EBTN liquid crystal display: it has superior visual effects, its excellent high-contrast negative display makes the display more conspicuous, and the reading is easier, and it has high cold resistance so that it can still display normally even in harsh and extreme environments , Does not affect the measurement.
LED FUNCTION DESCRIPTIONS
NCV voltage values above are tested at contact distance (0 cm) from the charged bare
wire,it is used for reference only.When meter is at some distance away from test object,
NCV indication light may change to the weaker voltage color.
Power-on battery power detection function
LED indicates the battery level, which can provide a more intuitive way to remind users to replace the battery

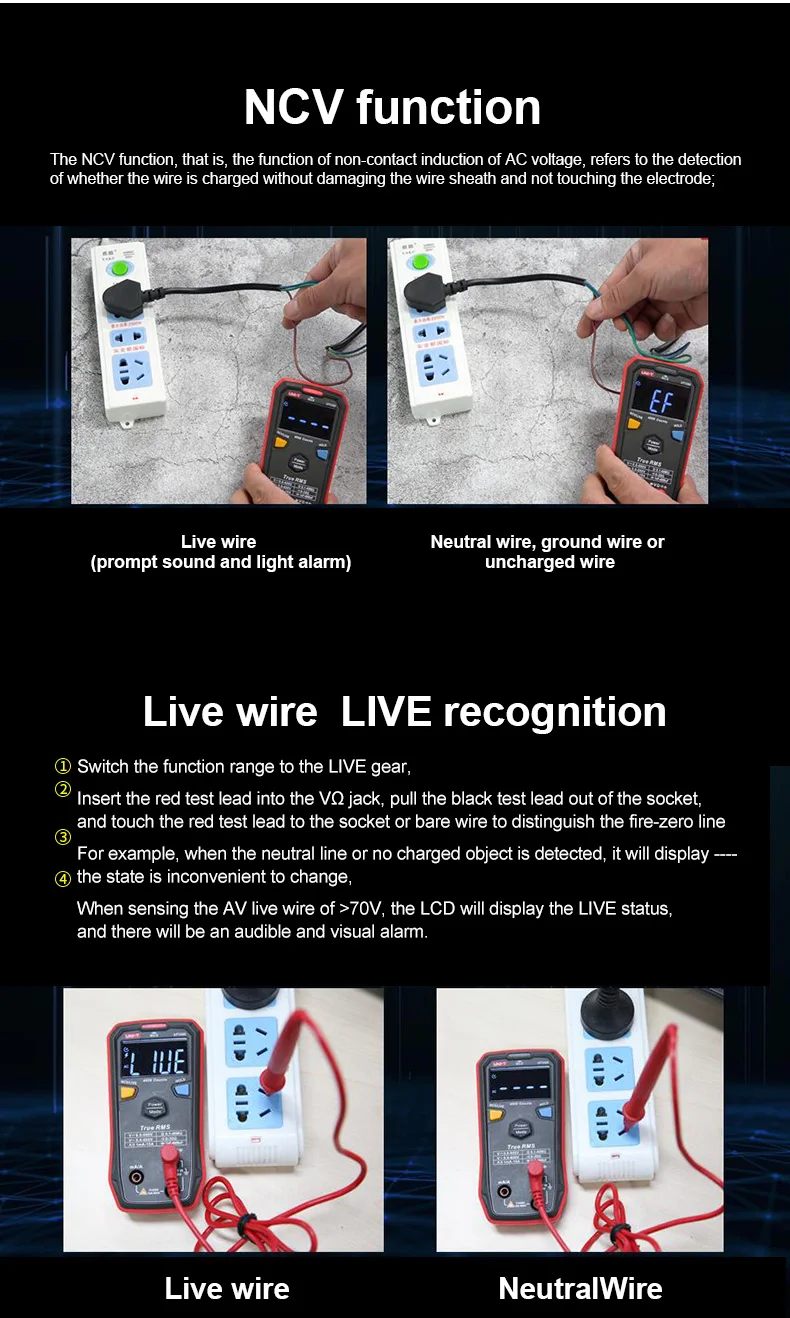

NCV function
The NCV function, that is, the function of non-contact induction of AC voltage, refers to the detection of whether the wire is charged without damaging the wire sheath and not touching the electrode.
Product introduction and parameters

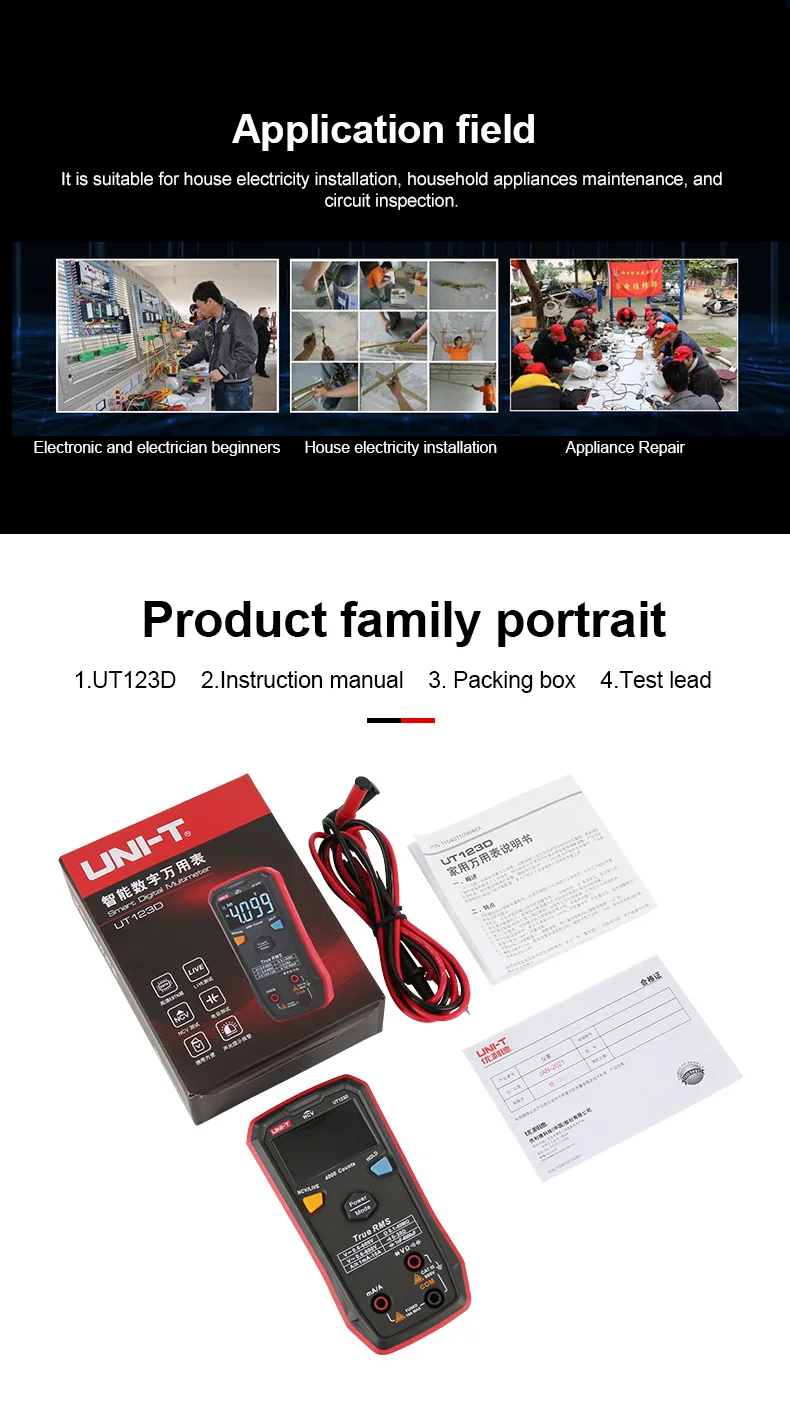

Application field
It is suitable for house electricity installation, household appliances maintenance, and circuit inspection.
