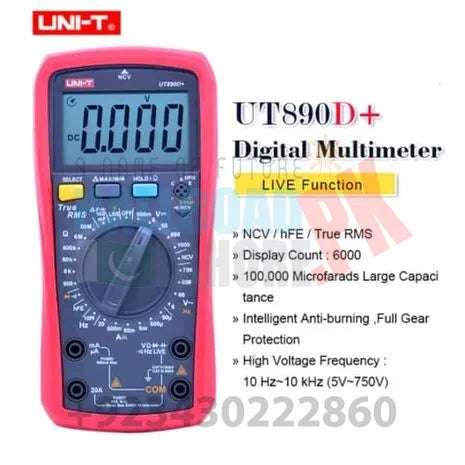

The UNI-T UT890D+ 6000-count true RMS digital multimeter is designed with a large LCD display. The maximum measurable capacitance of the Digital Multimeter is 100mF, with a fast response time of less than 12s. The NCV and continuity measurement have acousto-optic indications. UT890D+ DMM has a LIVE function for distinguishing between live and neutral wires. In addition, True RMS Multimeter is equipped with the automatic fuse blown detection and high voltage protection.
Features Of UT890D+Manual Range True RMS Multifunction Digital Multimeter/NCV/Capacitance Test:
True RMS measure for Current and Voltage. 6000 Counts display range.
It has an LCD backlight
REL function for Capacitance measuring. Minimum resolution rate 1pF, Maximum measuring range up to 6000uF.
Overload protection up to 600V for Capacitance, Resistance, Buzzer, Diode, and Frequency measuring.
High accurate frequency measuring function. Minimum resolution rate 0.001Hz, Unique (MAX-MIN) value calculate function.
Frequency respond is (40Hz~1KHz) (Sine Wave, triangular wave)
Acousto-optic indication(NCV/continuity): Yes
High voltage false detection: 1000Vrms
Current (AC/DC) mode memory: Yes
Over-current alarm: ≥20A
Low Battery Indication: ≤2.5V
Auto Power Off: 15Min
Backlight: 30s
Specifications Of UNI-T UT890D+ True RMS 6000 counts AC/DC Live function DMM:
Power supply: 1.5V x 2 (Battery Included)
Safety grade: CE / CAT.II 1000V / CAT.III 600V
External dimension: 183mm x 88mm x 56mm
DC voltage:
Range: 600mV/6V/60V/600V/1000V
Accuracy: ±(0.5%+2)
AC voltage :
Range: 6V/60V/600V/750V
Accuracy: ±(0.8%+3)
DC Current:
Range: 60uA//600uA/6mA/60mA/600mA/20A
Accuracy: ±(0.8%+8)
AC Current:
Range: 60uA//600uA/6mA/60mA/600mA/20A
Accuracy: ±(1%+12)
Resistance:
Range: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Accuracy: ±(0.8%+3)
Capacitance:
Range: 6.000nF/60.00nF/600.0nF/6.000μF/60.00μF/600.0μF/6.000mF/60.00mF/100.0mF
Accuracy: ±(3%+10)
Frequency:
9.999Hz ~ 9.999MHz: ±(0.1%+5)
Applications:
Electrical switchboards
HVAC systems
Electrical circuit faults detection
Installation or maintenance of electronics/factory equipment
Electronics component development, circuit board design
Users who need to distinguish between neutral/live wire frequently
Package includes:
- 1x UNI T True RMS Digital Multimeter UT890D+
