Description
UT120 series multimeters are designed for DIYers and electronics engineers to troubleshoot electronics systems development and electronics circuits. It is a simple and portable multimeter for every electronics engineer.
Applications:
It can used in troubleshoot electronics systems development and electronics circuits.
Features:
1. Auto power off2. Auto range
3. 4000 display count
4. Data hold and relative mode1
Technical specifications:
| Specifications | Range | UT120A |
| DC voltage (V) | 600V | ±(0.8%+1) |
| AC voltage (V) | 600V | ±(1.2%+3) |
| Resistance (Ω) | 40MΩ | ±(1%+2) |
| Frequency (Hz) | 100kHz | ±(0.5%+3) |
| Features | ||
| Display count | 4000 | |
| Auto range | √ | |
| Duty cycle | 0.1%~99.9>#/td### | √ |
| Diode | √ | |
| Auto power off | Around 30 minutes | √ |
| Continuity buzzer | √ | |
| Low battery indication | ≤2.4V | √ |
| Data hold | √ | |
| Relative mode | √ | |
| Input impedance for DCV | Around 10MΩ | √ |
| General Characteristics | ||
| Power | 3V battery (CR2032) | |
| Display | 43mm x 22mm | |
| Product color | Red and grey | |
| Product net weight | 76g | |
| Product size | 110mm x 58.2mm x 10.8mm | |
| Standard accessories | Battery, carrying case | |
| Standard individual packing | Blister, English manual | |
Package:
- 1 x UT120A UNI T Pocket Size Digital Multimeter

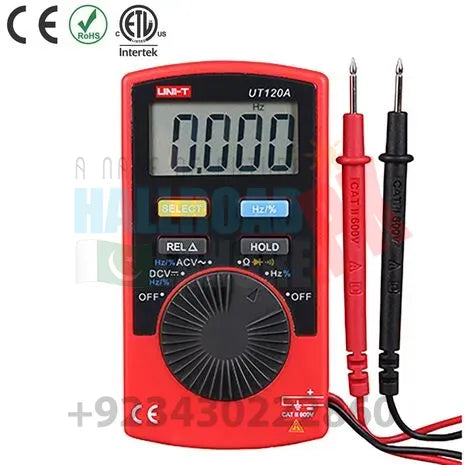

UT120A UNI T Pocket Size Digital Multimeter
Rs.3,696
