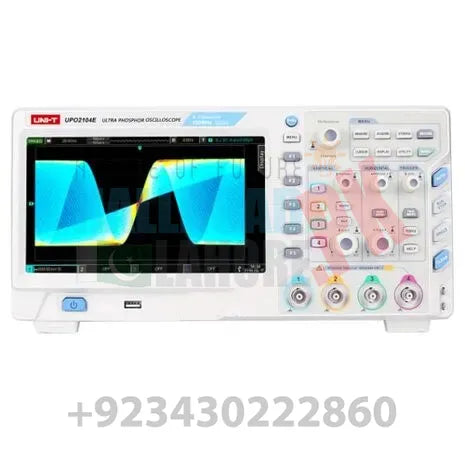

UNI T 4 Channel Oscilloscope UPO2104E

Rs.190,800
SKU: UPO2104E
Availability : In Stock Pre order Out of stock
People are viewing this right now
sold in last hours

Description

The UNI-T UPO2104E is a 4-channel oscilloscope for high performance and is a direct successor to the UPO2104CS. Compared to its predecessor, a number of specifications have been changed, for example, the 2104E has a memory depth of 56 Mpts and the waveform capture rate has been increased to 80,000 wfms per second. What makes this scope really unique is that it can use a separate time base per channel. Furthermore, the scope has a large number of functions and the trigger options have been drastically expanded.

Features Of 100MHz 4 Channel Digital Oscilloscope:

Comes with a USB interface for storing signals and measurement results.
Large 8" LCD screen and low noise floor, the scope displays all signals in great detail.
256-level intensity grading display, which is a nice feature for oscilloscopes in this price range.
Multiple signals are placed on top of each other to show the most common signals with more intensity.
This oscilloscope also offers color temperature indication to show more clearly how often values occur in a signal.
4 channels oscilloscopes and can compete with the highly successful models such as those of Siglent and Rigol.

Specifications Of UNI-T 4 Channel DSO :

Bandwidth: 100MHz
Channels: 4
Sample rate: 1GSa per second
Memory depth: 28Mpts (per channel), 56Mpts (when using 1 channel)
Waveform capture rate: 80,000wfms per second
Trigger types: Edge, Pulse, Slope, Video, Run, Window, N-edge, Delay, Timeout, Duration, Setup/Hold, Code
Vertical scale: 1mV/div - 20V/div
Horizontal scale: 5ns/div - 50s/div
Connectivity: USB Host, USB Device, LAN, AUX Out (Trig Out, Pass/Fail)
Decode capabilities: RS-232/UART, I²C, SPI
Display: 8" 800x480 TFT LCD, WVGA (800 x 480)
Weight: 3.5kg
Dimensions: 336 x 164 x 108mm

Package Includes:

  • 1 x 4 Channel Oscilloscope UPO2104E
  • 1 x 4 Probes
  • 1 x Power cord
  • 1 x USB Cable
