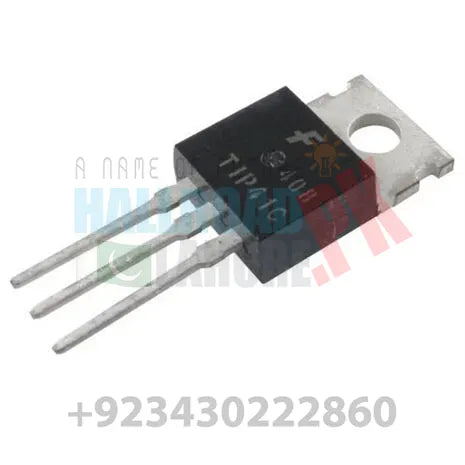

Tip41c Tip41 Npn Power Transistor

TIP41C - PNP Power Transistors  is designed for general–purpose switching and amplifier applications.
Collector–Emitter Saturation Voltage —

VCE(sat) = 1.5 Vdc (Max) @ IC = 6.0 Adc

Collector–Emitter Sustaining Voltage —

VCEO(sus) = 60 Vdc (Min) — TIP41A, TIP42A
VCEO(sus) = 80 Vdc (Min) — TIP41B, TIP42B
VCEO(sus) = 100 Vdc (Min) — TIP41C, TIP42C

High Current Gain — Bandwidth Product

fT = 3.0 MHz (Min) @ IC = 500 mAdc

Compact TO–220 AB Package

datasheet : https://www.fairchildsemi.com/datasheets/TI/TIP41C.pdf
