The development board using Micro USB cable supply, compatible with smart phone lines, data lines is simple and easy to get, but not USB Mini line-powered
Low price, user-friendly design, a full set of data, allowing you to save money, save time, effort, worry
Technical Information:
the core board is working properly
The core board schematics (PDF format) and tested source. Burned into the test program, LED flashes, allowing you to detect
Provide at IAR and STVD two development environments register operation and routine operation of the library functions. Timer routine, UART transmit routine, UART receive routines, clock switching routines, AD routines and so on
STM8 Applications:
STM8 package library
IAR development environment, STVP programming software
STM8S core board of the main features:
Use STM8S103F3P6 as the master IC
You can use 2.54 pin on the board or power supply pad, the pad when using power supply, input voltage range 4.5V-15V, can output to the outside through pin 3.3V
Note: 5V pin's voltage is the input voltage of the module
Leads to all pins, the pins next to the pin marked the label, with a reset button, power LED, and the program demonstrates LED, small but perfectly formed
Support SWIM debug mode
STM8S003F3P6 performance comparison:
STM8S003F3 chips only 128 bytes of EEPROM
STM8S003F3 chip FLASH erase only 100 times
Package Included:

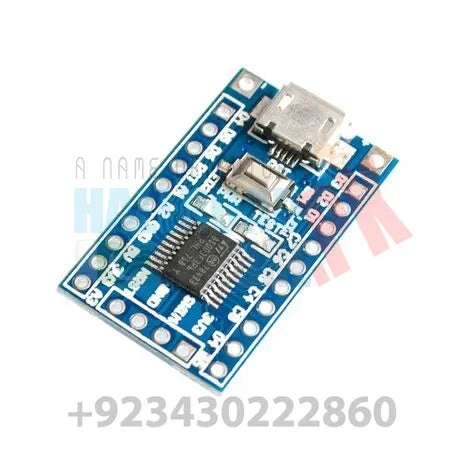

1 x STM8 Development Board Minimum System Board STM8S003F3P6 Module
