SOP SSOP 8 SMD Adapter Board 0.65mm/1.27mm 8 Pins Pitch IC Socket Adapter Plate PCB For Arduino

Rs.78
SKU: 9152
Availability : In Stock Pre order Out of stock
People are viewing this right now

Description

So, you've got a project in mind but the chip you want to use is a fine pitch 0.65mm/1.27mm chip. Well, this adapter board could be just what you need. When using this board, please bear in mind that you can't solder the smaller 0.5mm pitch devices with a soldering iron. Use solder paste (with a stencil) and a hot air gun or oven.Features:

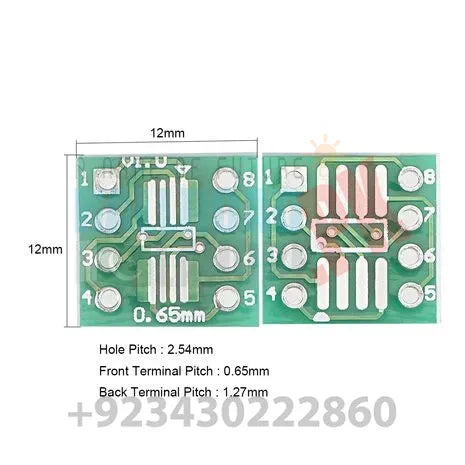

Front side : SSOP-8PIN-Pitch 0.65MM
Backside: SOP-8PIN-Pitch 1.27MM

Parameters:

Product Name : Double-Sided Pre Tinned PCB Board
Material : Glass Fiber FR-4
Board size : approx. 0.47 x 0.47 inch / 12 x 12 mm ( W x L )
Terminal Number : 8
Thickness : approx. 1.6mm
Hole Diameter : 1 mm
Hole Pitch : 2.54mm (Through 2.54 pitch pin header ,it can be used to the SIP3 DIP bread board.)
Color : Green,Silver Tone

Package Includes:
1x  SOP SSOP 8 SMD Adapter Board  0.65mm/1.27mm 8 Pins Pitch IC Socket Adapter Plate PCB For Arduino
