Solid state relays consist of a pair of triacs driven and isolated from the control by a photocoupler. They are perfectly suited for driving loads such as motors, heaters, solenoids, valves, and fans in maximum safety and with total decoupling between the two stages with guaranteed insulation up to 1.5KVac.

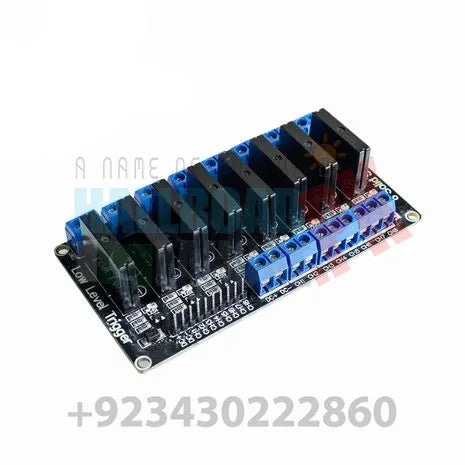

With this module equipped with eight OMRON G3MB-202P relays it is possible to drive important loads with an absorption up to 2A.
The input and output terminals of the G3MB-202P are electrically isolated, which allows you to control very high currents with very small input signals.
It can be widely used in machine tools, cnc, IR stations, and wherever it is necessary to drive important loads. The very small footprint and the rapid assembly and connection using the screw terminal blocks on the pcb, make it a very valid and easy to use product.
Technical specifications:
- Permissible output voltage: 240VAC
- Maximum controllable current: 8 channels of 2A each.
- Resistive fuse protected output: 2A maximum
- Supply voltage: 5Vdc
- Absorbed current: ≤160mA
- Activation voltage: 3.3 ~ 5Vdc
- Activation current: 2mA
- Status led for each channel
- Dimensions 130 x 60 x 25h mm
Connection method:
Input:
DC +: + 5Vdc
DC-: GND
CH1: channel 1 activation signal
CH2: channel 2 activation signal
CH3: channel 3 activation signal
CH4: channel 4 activation signal
CH5: channel 5 activation signal
CH6: channel 6 activation signal
CH7: channel 7 activation signal
CH8: channel 8 activation signal
Output:
Eight two-contact terminal blocks for each output
