The SN74HC245N octal bus transceivers are designed for asynchronous two-way communication between data buses. The control-function implementation minimizes external timing requirements.The devices allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so that the buses are effectively isolated.
Features:
Wide Operating Voltage Range of 2 V to 6 V
High-Current 3-State Outputs Drive Bus Lines buses. The control-function implementation minimizes
Low Power Consumption, 80-μA Max ICC The devices allow data transmission from the A bus
Typical tpd = 12 ns to the B bus or from the B bus to the A bus,
±6-mA Output Drive at 5 V depending on the logic level at the direction-control
On Products Compliant to MIL-PRF-38535, effectively isolated.
Applications:
Octal bus transceiver
DataSheet:
SN74HC245N Datasheet
Package Includes:

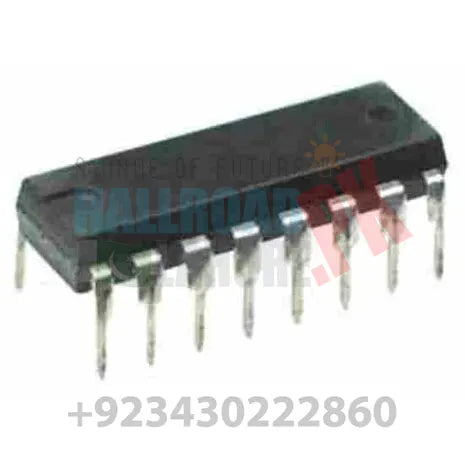

1x SN74HC245N IC
