Description
Description:

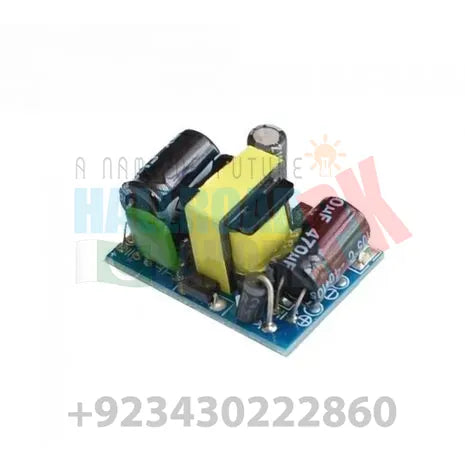

Module Properties: Ultra small,Precision, isolated Switch Power Supply,AC to DC Buck module,With indicator
Dimensions:3cm x 2cm x 1.8cm
Input voltage:AC 90V~250V 50/60HZ
Output voltage:DC 12V (±0.2V)
Output Current:450mA
Output power: 5W
Specifications:
Working Temperature:-20 ~ 60℃
Relative Humidity:40 ~ 90%R
Input Voltage Range:85~ 265v
Input Current:
0.0273A(AC110V)
0.014A(AC220V)
Input Inrush Current: 20A
Output Voltage Range:11.80~12.1V 0~500mA
Output Power:0 ~6.0 W
Output Efficiency:80%
Input Voltage Of AC85 ~ 265v 50/60 HZ
Output Voltage DC12V (±0.1V)
Output Current 450MA
Power 5W
Size:3 x 2 x 1.8 cm
Professional Pcb Mount 12v 400ma 4w Ac-dc Step Down Isolated Switching Power Supply Module In Pakistan
Rs.294
