Programmer Pickit 3.5 Pic Kit3.5 Pickit3.5

Rs.7,500
SKU: 7312
Availability : In Stock Pre order Out of stock
People are viewing this right now
sold in last hours

Description

PICKIT3.5 PIC KIT3.5 PICKIT 3.5 Programmer is offline programming simulation PIC microcontroller chip. PICkit3 Microchip In-Circuit Debugger / Programmer uses in-circuit logic debugging built into each chip with flash memory to provide a low-cost hardware debugger and programmer and this pickit programmer is the 3.5 upgrade Kit, the best choice, after the upgrade advantages.

Features Of PICKit 3.5 USB PIC Programmer/Debugger Compatible:

  • Offline programming never stops, so download more smoothly and completely conquer all versions of MPLAB, MPLAB X.
  • Each PICkit3.5 with a single serial number, MPLAB X under, can operate more Kit3.5.
  • Increase the external power supply current, the output voltage is more stable.
  • Interface protection is more perfect.
  • USB (Full speed 12 Mbit / s host PC interface).
  • Real-time.
  • MPLAB IDE compliant execution (free download from Microchip).
  • Built-in over-voltage / short circuit monitor.
  • Firmware is upgradeable from PC / Web download.
  • Fully closed.
  • Diagnostic LED ( power, busy, error).
  • The program read/write and microcontroller memory data.
  • Clear space with verification program memory.
  • Freeze-peripherals at the breakpoint.
  • Program up to 512K byte flash with the Programmer-to-Go.
  • ICSP cable included.

Applications Of Pickit 3.5 PIC Programmer:

  • Program PIC Microcontrollers.
  • Debug PIC Microcontrollers.
  • Code dumping in the production process.
  • Flashing or Firmware update.

PicKit 3 Pinout:

  1. MCLR/Vpp: Connected to Master clear external reset pin of PIC to reset the MCU before programming
  2. VDD (Target): Target voltage of PIC, 5V or 3.3V
  3. Ground: Ground pin of the system
  4. PGD/ICS0PDAT: Program Data(PDG) is connected to the In-Circuit Serial Programming (ICSP) data pin
  5. PGC/ICSPCLK: Program Clock (PGC) is connected to In-Circuit Serial Programming (ICSP) clock pin
  6. No connection: This pin is reserved for future use

Tutorial of PICKIT 3.5 Programmer Programming Adapter:

  https://microcontrollerslab.co...

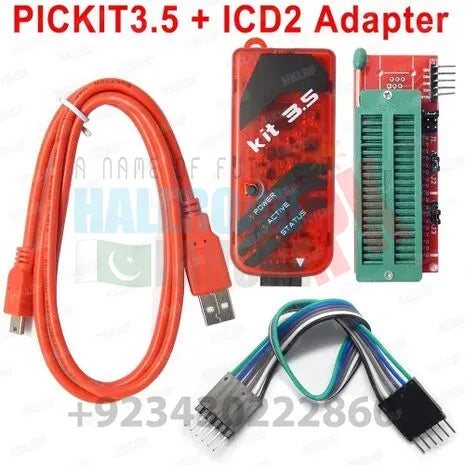

Package Includes:

  • 1 x Pickit 3.5
  • 1 x USB cable
  • 1 x Jumper wire
