Ne555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator

Rs.156
SKU: 6224
Availability : In Stock Pre order Out of stock
People are viewing this right now
sold in last hours

Description

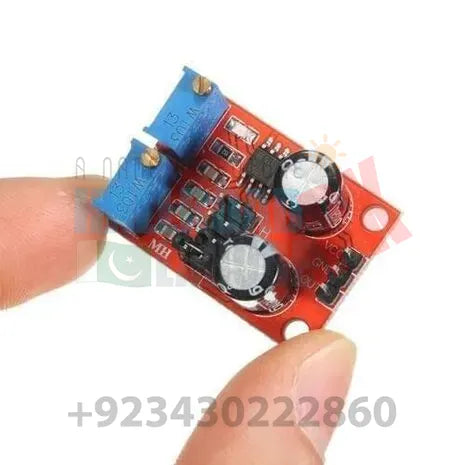

NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator is 5 V square wave signal generator. Wave Signal Generator generates a square wave signal used for experimental development. Also, use to drive a stepper motor for generating a square wave drive signal.
The output duty cycle can fine-tune. Duty cycle and frequency is not separately adjustable, adjusting the duty cycle will change the frequency.

Features of NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator:

  1. As a square wave signal generator generates a square wave signal used for experimental development.
  2. Used to drive a stepper motor for generating a square wave drive signal.
  3. Generate an adjustable pulse for MCU.
  4. Generate adjustable pulse, to control circuitry associated.
  5. Size:?31mm x 22mm

Specifications of NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator:

  1. Main chip: NE555
  2. Input Voltage: 5V-15V DC. when the power supply is 5 V, the output current can be 15 MA around; when 12V power supply, the output current can 35 MA around
  3. Input current: >=100 MA
  4. Output amplitude: 4.2V V-PP to 11.4V V-PP. (Different input voltage, the output amplitude will be different)
  5. Maximum output current: >=15MA (5V power supply, V-PP greater than 50%), >=35MA (12V power supply, V-PP greater than 50%)
  6. Output with LED indication(low level, LED will on; high level, LED will off; low frequency, the LED flashes)
  7. The output frequency range is selectable:
  8. LF file: 1Hz ~ 50Hz
  9. IF file: 50Hz ~ 1kHz
  10. High-frequency file: 1KHz ~ 10kHz
  11. HF file: 10kHz ~ 200kHz
  12. The output duty cycle can fine-tune; duty cycle and frequency is not separately adjustable; adjusting the duty cycle will change the frequency

NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal

Image result for NE555 Pulse Frequency Duty Cycle Adjustable Module

Package Includes:

1 x NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator
