Description

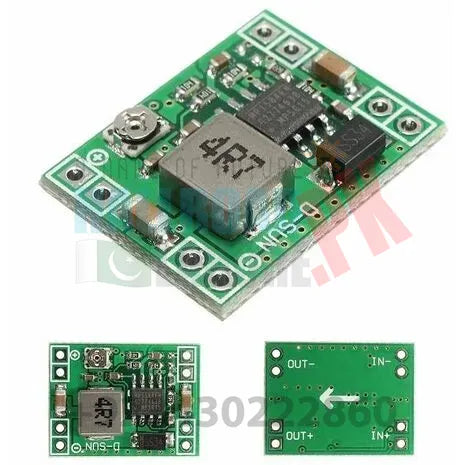

Mini MP1584EN DC-DC BUCK Adjustable Step Down Module 4.5V-28V Input 0.8V-20V OutputThe MP1584 is a high frequency step-down switching regulator with an integrated internal high-side high voltage power MOSFET
Specifications:
Model:MP1584
Name:DC-DC step-down module
Input Voltage: 4.5V ~ 28V
Output voltage: 0.8V ~ 20V
Output Current: 3A (Max)
Conversion efficiency: 96% (maximum)
Output Ripple: <30mV
Switching frequency: 1.5MHz (highest) typically 1MHz
Operating Temperature: -45°C ~ +85°C
Size: 22mm * 17mm (L * W )
Application areas:
DIY mobile power
monitor power supply
power buggies
camera power supply
car power
communications equipment supply,etc.
Packge included:
1 x Step Down Module
