Description

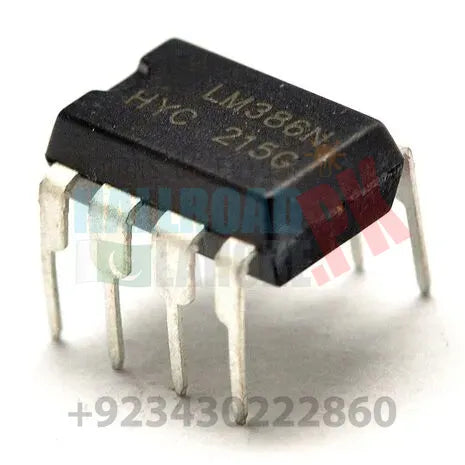

LM386 Audio Power Amplifier in Pakistan
The LM386 is a power amplifier designed for use in low voltage consumer applications. The gain is internally set to 20 to keep external part count low, but the addition of an external resistor and capacitor between pins 1 and 8 will increase the gain to any value from 20 to 200.
Features
Battery operation
Minimum external parts
Wide supply voltage range: 4V-12V or 5V-18V
Low quiescent current drain: 4mA
Voltage gains from 20 to 200
Lm386 Audio Power Amplifier In Pakistan
Rs.39
