Description
The module is designed for simultaneous charging of 2 Li-ion batteries, up to 3A. Charging module for Li-ion batteries based on 8205A microcircuits, charge level controllers.
Product parameters:
- Charging Voltage: 8.4V-9V
- Overcharge Voltage Range: 4.25V-4.35V ± 0.05V
- Overpressure Voltage Range: 2.3V-3.0V ± 0.05V
- Upper Limit Operating Current: 3A
- Upper Limit Instantaneous Current: 5A
- Quiescent Current: less than 3uA
- Operating Temperature: -40- +50 degrees
- Internal Resistance: less than 45mΩ
- Effective Life: more than 50,000 hours
- Storage Conditions: -40- +80 degrees
- Size: 36 * 6 *2.0mm
Pin Descriptions:
- B+ B-: The interface of battery core
- P+ P-: The connector of battery board
- MB: The connection point between the batteries
- B+: Battery V+ Positive
- B-: Battery V- Negative
- P+: Output / Charging V+
- P-: Output / Charging V-
Package Includes :

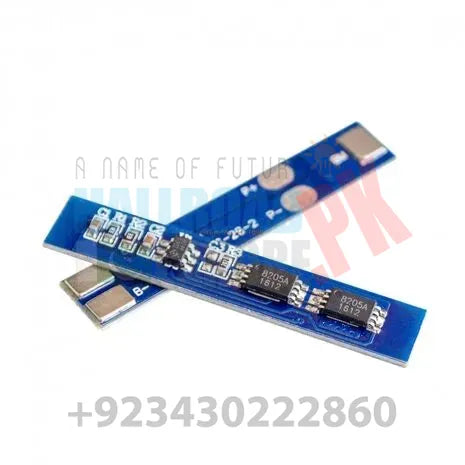

1 x 2S 3A Li-ion Lithium Battery 7.4V 8.4V 18650 Charger Protection Board Module
Fdc-2s-22s 3a 7.4v 8.4v 18650 Lithium Lipo Cell Battery Charger Board Li-ion Battery Charging Pcb Bms Protection Module Hx-2s-01
