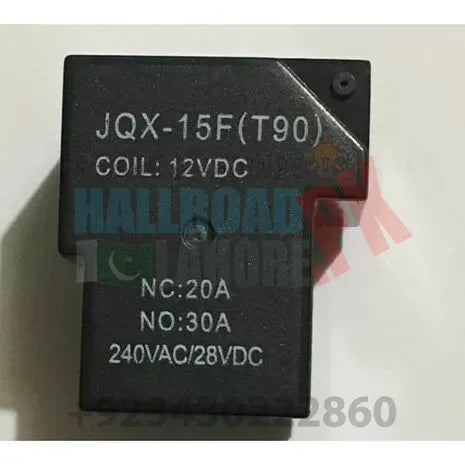

24VDC 6 pin JQX-15F(T90) Electromagnetic Induction Power Relay is an electrically operated switch. Electromagnetic Induction Power Relays used an electromagnet to mechanically operate a switch, but other operating principles are also used, such as solid-state relays. Relays are used where it is necessary to control a circuit by a separate low-power signal, or where several circuits must be controlled by one signal. The first relays were used in long-distance telegraph circuits as amplifiers: they repeated the signal coming in from one circuit and re-transmitted it on another circuit. Relays were used extensively in telephone exchanges and early computers to perform logical operations.Features of 24VDC 6 pin JQX-15F(T90) Electromagnetic Induction Power Relay:
100% Brand new and High quality.
Electronic components, Industrial supplies, Synthetic accessories include Copper Post, Sensitive Resistor Photoresistor, Potentiometers, Rocker Switch, Module board, Temperature Controller, Proximity Switch, Rectifier, Nuts Bolt Screw, Toggle Clamp, Fasteners & Hardware, Home & Garden.
Ultra-small volume
Low Power Consumption
Large Load contact
High sensitivity
Specifications of 24VDC 6 pin JQX-15F(T90) Electromagnetic Induction Power Relay:
Classification
PCB Relay
Product Model
JQX-15F(T90)
Contact Form
1Z
Coil Voltage
5/6/9/12//24/48VDC
Operate Voltage
≤ 3.8/4.5/6.8/9.0/13.5/18.0/27.0/36.0VDC
Release Voltage
≥ 0.5/0.6/0.9/1.2/1.8/2.4/3.6/4.8VDC
Coil Power(W)
0.93W
Contact Rating
1H: 30A; 1Z: 20A (250VAC / 28VDC)
Contact Resistance
100mohm
Insulation Resistance
100mohm (500VDC)
Between Open Contact
1500VAC 1min
Between Coil and Contact
2000VAC 1min
Electrical Life
1*105
Mechanical Life
1*107
Ambient Temperature
-25 ~ +60°C
Outline Dimension(L*W*H)
32.5*27.5*20.5 (mm)
Mounting Form
PCB Terminal
Package Includes:
1 x 24VDC 6 pin JQX-15F(T90) Electromagnetic Induction Power Relay
