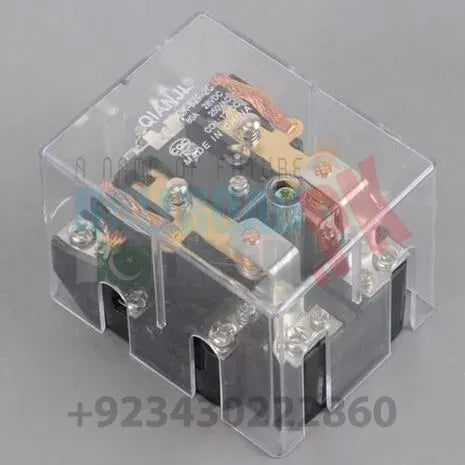

JQX-62F 2Z 220VAC High Power Relay Coil is an electrically operated switch. High Power Relay Coil consists of the set of input terminals for a single or multiple control signals, and a set of operating contact terminals. The switch may have any number of contacts in multiple contact forms, such as making contacts, break contacts or combinations thereof.Relays are used where it is necessary to control a circuit by an independent low-power signal, or where several circuits must be controlled by one signal. Relays were first used in long-distance telegraph circuits as signal repeaters: they refresh the signal coming in from one circuit by transmitting it on another circuit. Relays were used extensively in telephone exchanges and early computers to perform logical operations.
Features of JQX-62F 2Z 220VAC High Power Relay Coil:
Can adjust automatically, protect and transform the electric circuit.
Used widely in remote control, communication, automatic control system, electronic equipment, etc.
High Power Electromagnetic Relay, widely used in the automation control system.
External Material: Plastic
Colour: Black, Clear
Specifications of JQX-62F 2Z 220VAC High Power Relay Coil:
Coil: 220VAC
Contact capacity: AC 250V 120A/DC 28V
DPDT: 2Z type, plastic housing.
Weight: 300 Gram
Contact Capacity: 80A 250V AC/30V DC
Size (Approx.): 8.1 x 6.5 x 6.5cm / 3.2" x 2.5" x 2.5" (L * W * H)
Technical Specifications:
Contact form
2Z
Contact material
AgCdO
Rated load
120A 250V AC / 28V DC
Coil supply voltage
220V AC
Power consumption coil
2.5 VA
Tripping voltage (at 25 ° C)
176 V
Release voltage (at 25 ° C)
72 V
Coil resistance, ± 10%
12 kΩ
Response time / release
25ms / 25ms
Contact resistance
100mΩ (1A 6V DC)
Insulation resistance
1000MΩ 500V DC
Resource
electric
5x10 4 cycles
mechanical
10 7 cycles
Dielectric strength
between contacts
1200V
between the contact and the coil
2500V
Operating temperature
-20 ° C ... + 60 ° C
Package includes:
1 x JQX-62F 2Z 220VAC High Power Relay Coil
