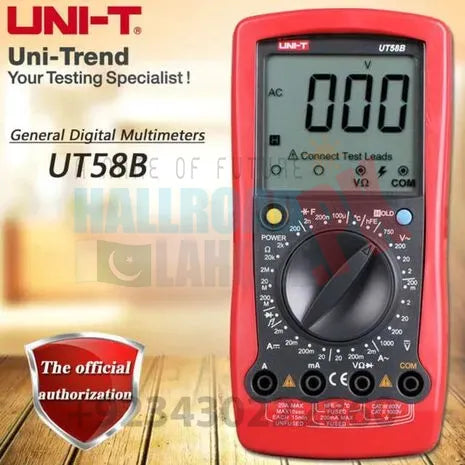

Uni Trend’s UT58B is a popular general-purpose multimeter in the mid-budget price point. The Display on the UT58B is 2000-count and large for the meter Palm-size UNI-T digital Multimeter is able to measure high voltage, amperage, resistance, capacitance, and frequency, as well as temperature. The UNI-T UT58B General DMM mostly suits those with some familiarity with multimeters as it is a manual ranging meter. One of the most apparent features of Pocket-size Multitester is its ability to measure 20A for AC and DC current. Although stated as temporary, this is still a bold claim as the high current input is unfused. In addition, it's CATIII 600V rating might also be a bit reaching. However, Portable Digital MultiTester UT58B also has a generous resistance range – up to 200MΩ – and can do frequency and capacitance, making it fairly suitable for electronics workThe UNI-T UT58B takes its time to measure larger capacitors, and while there is a function for measuring transistor gain, this is seldom used. You can also check for continuity and test current drop across diodes on the same range – it has an audible beeper. The temperature feature of Handheld DMM UNI-T UT58B is a big plus, with a stated range from -40°C to 1,000°C. There is no Fahrenheit setting, unfortunately, but a Type-K thermocouple cable and an adapter plug come included with the multimeter. In addition, the adapter has insertion sockets for quickly testing capacitors and transistors.
Features Of UNI-T Palm Size Digital Multimeter UT58B:
2000 display count, refresh rate 2~3 times/s
Function symbols and test lead connection indication
Transistor measurement
Temperature measurement mode, with K-type temperature probe
Diode and continuity buzzer; auto power off; overload protection
Data hold; 20A AC/DC current measurement
Specifications Of UT58B Handheld and Pocket Size MultiTester:
Power: 9VBattery (6F22)
LCD Size: 60×54mm
Max. Display: 1999
Product Color: Red and Grey
Product size: 180mmx87mmx39mm
DC Voltage(V):
Range:200mV/2V/20V/200V/1000V
Accuracy: ±(0.5%+1)
AC Voltage(V):
Range:2V/20V/200V/750V
Accuracy: ±(0.8%+3)
DC Current (A):
Range:20μA/2mA/20mA/200mA/20A
Accuracy: ±(0.8%+1)
AC Current (A):
Range:2mA/200mA/20A
Accuracy: ±(1%+3)
Resistance(Ω):
Range:200Ω/2KΩ/20KΩ/2MΩ/20MΩ/200MΩ
Accuracy: ±(0.8%+1)
Capacitance (F):
Range:2nF/200nF/100Μf
Accuracy: ±(4%+3)
Temperature (°C) :
Range: -40°C~1000°C
Accuracy: ±(1%+3)
Package includes:
1x UNI-T UT58B Digital Multimeter
