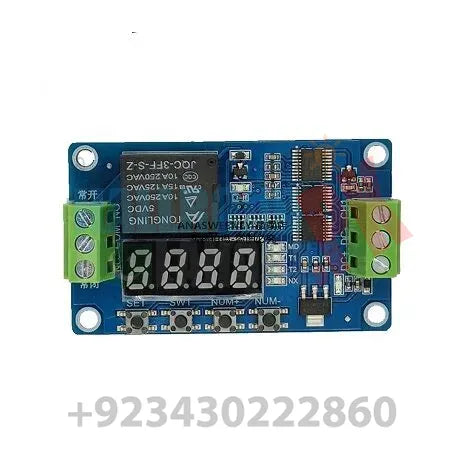

Frm01 Time Delay Cycle Self-lock Relay Control Module 18 Functions

• FRM01 multifunctional relay control module specially designed for a wide range of users with different needs the use of a micro controller as the main control unit preset 18 kinds of functions and can be based on the needs of users customize and add other specific functions.
• Genuine high quality relay modules high power high voltage transistor red blue signal lights military grade double-sided PCB board cloth board consider a comprehensive stable performance can be widely used in a variety of power control type.
• Typical Applications: Home Lighting Systems / Remote Control / Remote Lock / Smart Home / Home Automation / DC 12V LED Lighting /12V Fluorescent Lamp DC Motor / Fluorescent Lamp / Automotive Electronics / PLC / Industrial Automation and Control
  • new upgrade to version 3.0 (Single-chip solution) eight kinds of function module increased to 18 kinds to meet the needs of more applications;
  • low level triggered opto-isolated input
  • increase the supply of anti-reverse function the power does not damage the module incorrectly;
  • uses high-quality high-voltage power supplies discrete power supply before replacing the system more stable and reliable;
  • increased by 0.1 seconds of time time error from the previous 0.1 seconds update to 0.01 seconds;
  • increase the automatic power saving function users can independently install.
  • DC: 12V
  • size: (L * W * H) 7.60 * 4.50cm / 2.99 ""* 1.77"" (Approx.)

FRM01 Time Delay Cycle Self-lock Relay Control Module Functions:

Tips: function 1-8 at power-on start by itself function 9-18 requires a low pulse signal (low duration is less than 20ms later on) trigger the start.

Function 1: Pick belt: After power on the delay time of the relay pull T1 T1 from 0.1 seconds-270 hours is adjustable CH1 interface is low-level pulse signal repeat the above functions;

Function 2:on time: when the relay the delay time of the relay is disconnected T1 T1 from 0.1 seconds-270 hours is adjustable CH1 interface is low level pulse signal repeat the above functions;

Function 3:timing remove again: after the power relay does not pull the delay time T1 reaches the relay is energized; Pull the relay off after T2 arrival time T1 and T2 delay time in 0.1 seconds-270 hours between adjustable CH1 interfacelow pulse signal repeat the above functions;

Function 4:timing then take off: After power on immediately pull the relay T1 delay time relay after arrival; T2 arrival after the time relay is off -270 hours in 0.1 seconds delay time between T1 and T2 adjustable for CH1 interface low pulse signal repeat the above functions;

Function 5:Endless loop synchronization mode 1: After turning on the relay do not pull after the delay time T1 reaches the relay is energized; pull the relay disconnect after the time T2 comes and then repeat the above state the delay time of T1 and T2 in 0.1 is adjustable from the second to 270 hours give a low level pulse signal CH1 interface you can restart the above functions;

Function 6:endless loop timing mode 2: after power on immediately pull the time delay relay T1 reaches the relay off; arrive after the T2 time relay disconnect and then repeat the above state the delay time of T1 and T2 in 0.1 seconds adjustable between -270 hours give a low level pulse signal CH1 interface you can restart the above functions;

Function 7:end loop timing mode 1: 5 based on functionality increase the number of cycles of the function this time between T1 and T2 in 0.1 seconds-9999 seconds adjustable NX cycles adjustable from 1-9999 times CH1 interface low pulse signal above functions can be resumed;

Function 8:end loop timing mode 2: 6 based on the function increase the number of cycles of the function this time between T1 and T2 in 0.1 seconds-9999 seconds adjustable NX cycles adjustable from 1-9999 times CH1 interface low pulse signal the above functions can be resumed;

Function 9:relay modes: pulse signal CH1 low level relay interface relay give a low pulse signal the relay is disconnected.

Function 10:Relay start mode: CH1 interface low signal relay relay low disappear relay disconnect.

Function 11:pull the trigger time: After the power relay is inactive the low-level CH1 pulse signal interface the delay time of the relay pull T1 T1 from 0.1 seconds-270 hours is adjustable repeating the low level CH1 pulse signal interface repeat the above function;

Function 12:trigger on time: after the power relay is inactive low-level interface CH1 relay pulse signal time delay relay T1 T1 from 0.1 seconds-270 hours adjustable repeat CH1 interface low pulse signal repeat the above functions;

Function 13:pull the trigger timing then disconnect: After the power relay is inactive CH1 interface low-level pulse signal T1 delay time reaches the relay is energized; pull the relay off after T2 arrival time T1 and T2 delay times from 0.1 seconds-270 hours adjustable repeat CH1 interface low level pulse signal repeat the above functions;

Function 14:Disconnect and then pull the trigger time: After the power relay is inactive low-level CH1 pulse signal interface immediately pull the relay T1 delay time relay after arrival; T2 arrival after the time relay disconnect the delay time between T1 and T2 is 0.1 seconds-270 hours adjustable repeat CH1 interface low level pulse signal repeat the above functions;

Function 15:endless loop timing mode 1: after switching on the relay does not work at low level pulse signal CH1 interface the delay time T1 reaches the relay is energized; remove the T2 arrival time relay and then repeat the above state expansion when the time between T1 and T2 in 0.1 seconds-270 hours is adjusted repeat CH1 interface low level pulse signal the above functions can be resumed;

Function 16:endless loop timing mode 2: after the power relay is inactive low-level interface CH1 pulse signal immediately pull the relay T1 delay time relay after arrival; Break time T2 after reaching the relay then repeat the above state the delay time between T1 and T2 in 0.1 seconds-270 hours is adjustable repeat CH1 interface low level pulse signal the above function can be resumed;

Function 17:end loop timing mode 1: 15 based on functionality increase the number of cycles of the function this time between T1 and T2 in 0.1 seconds-9999 seconds adjustable cycles NX adjustable from 1-9999 times repeat to CH1 interface low pulse signal the above functions can be resumed;

Function 18:end loop timing mode 2: 16 based on functionality increase the number of cycles of the function this time between T1 and T2 in 0.1 seconds-9999 seconds adjustable NX cycles adjustable from 1-9999 times repeat to CH1 interface low pulse signal the above functions can be resumed;

Package Includes:

• 1 x FRM01 Time Delay Cycle Self-lock Relay Control Module
