Description

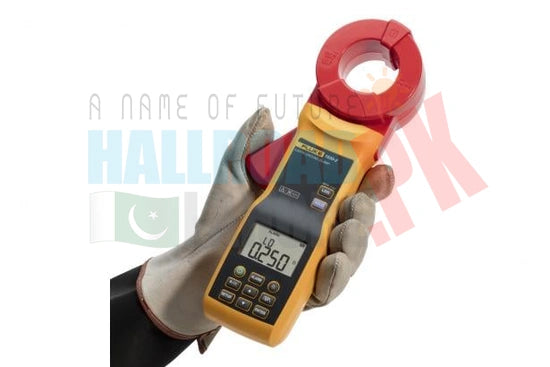

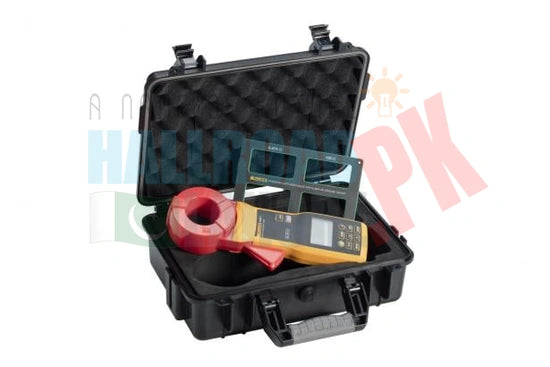

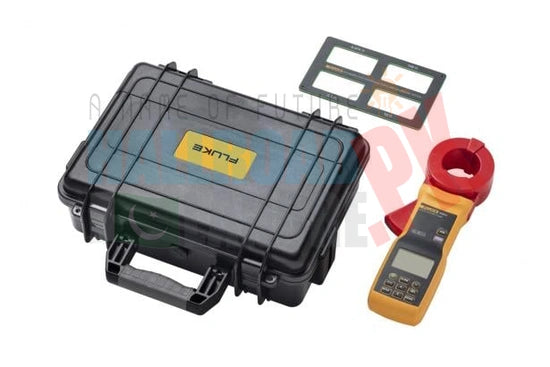

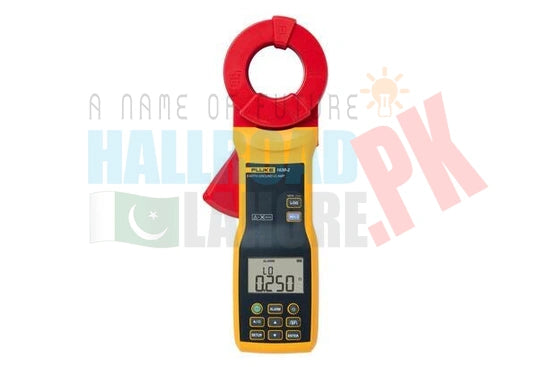

Fluke 1630-2 FC Earth Ground Clamp
The 1630-2 FC clamp measures earth ground loop resistances for multi-grounded systems using the dual-clamp jaw. This test technique eliminates the dangerous and time-consuming activity of disconnecting parallel grounds, as well as the process of finding suitable locations for auxiliary test stakes. You can also perform ground tests in places that were previously difficult: inside buildings, on power pylons or anywhere you don't have access to soil to place auxiliary test stakes.
Earth ground ac leakage current measurement
- Identify ac leakage currents without disconnecting the earth ground stake from the grounding system–ideal for system troubleshooting.
- Rugged heavy-duty clamp jaw stays in alignment and in calibration even in every day, on-the-job industrial environments.
Logging measurements
- The earth ground clamp saves time by automatically recording data at pre-set intervals
- Saves up to 32,760 measurements in memory at the set logging interval.
- Saves time by recording and storing measured values.
Specifications: Fluke 1630-2 FC Earth Ground Clamp
Electrical Specifications Maximum voltage to earth ground 1000 V Battery type AA alkaline IEC/EN LR6 (x4) Battery life More than 15 hours* * In Ground Resistance measurement mode, with backlight turned off, and RF mode turned off Frequency range 40 Hz to 1 kHz Ingress protection IEC/EN 60529: IP30 with jaw closed LCD Digital reading 9999 counts Refresh rate 4 per second Operating temperature -10 °C to + 50 °C Storage temperature -20 °C to + 60 °C Operating humidity Non condensing (<10 °C) (< 50 °F) ≤90% RH (at 10 °C to 30 °C [50 °F to 86 °F]) ≤75% RH (at 30 °C to 40 °C [86 °F to 104 °F]) ≤45% RH (at 40 °C to 50 °C [104 °F to 122 °F]) (Non condensing) Operating altitude 2000 m (6561 feet) Storage altitude 12 000 m (39,370 feet) Reference temperature 23 °C ±5 °C (73 °F ±9 °F) Temperature coefficient 0.15% x (specified accuracy)/ °C (<18 °C or >28 °C [<64.4 °F or >82.4 °F]) Overload indication OL Data logging capacity Minimum of 32,760 measurements Data logging interval 1 second to 59 minutes and 59 seconds Display reading specification with standard loop resistance Input (Ω) Minimum Maximum 0.474 0.417 0.531 0.5 0.443 0.558 10 9.55 10.45 100 96 104 Safety General IEC/EN 61010-1: Pollution Degree 2 IEC/EN 61557-1 Measurement IEC/EN 61010-2-032: CAT IV 600 V / CAT III 1000 V Current clamp for leakage current measurements IEC/EN 61557-13: Class 2, ≤30 A/m Resistance to earth IEC/EN 61557-5 Effectiveness of thepProtective measures IEC/EN 61557-16 Electromagnetic compatibility (EMC) International IEC/EN 61326-1: Portable Electromagnetic Environment CISPR 11: Group 1, Class B, IEC/EN 61326-2-2 Korea (KCC) Class A equipment (Industrial Broadcast & Communications Equipment) USA (FCC) 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103 Wireless Radio Frequency range 2412 MHz to 2462 MHz Output power <10 mW Radio frequency certification FCC ID:T68-FBLE IC:6627A-FBLE General Specifications Conductor size 40 mm (1.57 in) approximately Dimensions (L x W x H) 283 x 105 x 48 mm (11.1 x 4.1 x 1.9 in) Weight 880g (31 oz) Warranty One year Earth Ground Loop Resistance Range Accuracy1 ± (% of reading + Ω) 0.025 Ω to 0.249 Ω 1.5% + 0.02 Ω 0.250 Ω to 0.999 Ω 1.5% + 0.05 Ω 1.000 Ω to 9.999 Ω 1.5% + 0.10 Ω 10.00 Ω to 49.99 Ω 1.5% + 0.30 Ω 50.00 Ω to 99.99 Ω 1.5% + 0.50 Ω 100.0 Ω to 199.9 Ω 3.0% + 1.0 Ω 200.0 Ω to 399.9 Ω 5.0% + 5.0 Ω 400 Ω to 599 Ω 10.0% + 10 Ω 600 Ω to 1500 Ω 20.00% 1 Loop resistance with no inductance, conductor centered and perpendicular to jaw Earth ground leakage current mA Autorange 50/60 Hz, True rms, crest factor CF ≤3 Range Resolution Accuracy1 ± (% of reading + mA) 0.200 mA to 3.999 mA 1 μA 2.0% + 0.05 mA 4.00 mA to 39.99 mA 10 μA 2.0% + 0.03 mA 40.0 mA to 399.9 mA 100 μA 2.0% + 0.3 mA 0.400 A to 3.999 A 1 mA 2.0% + 3 mA 4.00 A to 39.99 A 10 mA 2.0% + 30 mA 1 Applies to signal frequency - 40 Hz to 1 kHz with filter set to OFF
- 40 Hz to 70 Hz with filter se to ON
