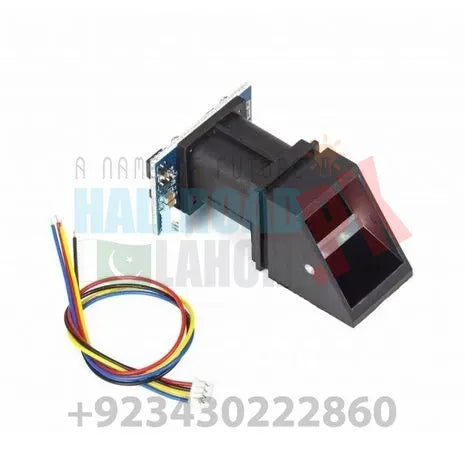

Original R305 Fingerprint Scanner Module In Pakistan

This is R305 Fingerprint processing includes two processes: fingerprint registration process and fingerprint matching process (fingerprint matching which is divided into fingerprint matching (1: 1) and fingerprint search (1: N) in two ways]. When the fingerprint is registered, entry twice for each fingerprint, and processed the image, a composite template is stored in the module. Fingerprint matching, through the fingerprint sensor, entry the fingerprint image and processing, and then matching comparison with the module fingerprint template (if it is matched a template specified in the module, known as fingerprint matching, that is 1: 1 mode. If it is matched with multiple templates, it is called fingerprint search mode (1: N mode). The module gives the result of matching (pass or fail).

Specifications and Features :

1. Profile: 256 bytes
2. Template file: 512 bytes
3. Power supply voltage: DC 5V
4. Operating current: <120mA
5. Peak current: <130mA
6. Fingerprint image input time: <0.5 seconds
7. Window area: 18.5 mm x 14.6 mm
8. Matching mode (1: 1)
9. Search method (1: N)
10. Storage capacity: 200 pieces
11. Security level: Five (from low to high: 1,2,3,4,5) system default 3
12. FAR: <0.001% (security level is 3)
13. Rejection rate (FRR): <1.0% (security level 3)
14. Search time: <1.0 seconds (1: 500 average)
15. Resolution: 500ppi
16. Host computer interface: UART (TTL logic level)
17. Communication baud rate (UART): (9600XN) bps Where N = 1 ~ 6 (default value N = 6, namely 57600bps)
18. Temperature: -25 °C to +55 °C
19. Relative humidity: 40% RH-85% RH (no condensation)
20. Storage temperature: -40 °C to +85 °C
21. Relative humidity: <90% H (no condensation)
22. Optical module (C3) overall dimensions (L × W × H): 47.65mm x 20.50mm x 21.20mm
23. Capacitive module dimensions: Main control board (L × W × H): 35mm x 28mm x 7mm
24. Sensors (L × W): 33.4mm x 20.4mm
25. Scratch-type module dimensions: Main control board (L × W × H): 35mm x 28mm x 7mm
26. Sensor board (L × W × H): 24mm x 20mm x 5mm

Documentation :

Host computer interface, the pins are defined as follows :

The module requires 2 groups of a power supply, a group for serial power supply, a group for power chip power, common ground.
1,6 for the sensor chip power supply, need to be power all the time; 3,6 for the module serial power supply. When the finger near the fingerprint window, pin 2 produces a high level, when MCU receive this level, through the module serial power control circuit (transistor or MOS tube) power the module 3,4 feet.

Module and the user equipment serial communication, the interface J1 pin is defined as follows:

Note: In the Type field, IN means input to the module and OUT means output from the module.

Hardware connection :

Module through the serial communication interface can be used directly with the 3.3V or 5V microcontroller to communicate: Module data transmission pin (4-pin TX) connected to the host computer data receiver (RXD), module data receiving pin (5 feet RX) connect on the position machine data transmission terminal (TXD).
To communicate with the host computer of the RS-232 level (eg PC), please add a level-shifting circuit between the module and the host computer (eg MAX232 circuit).

Serial protocol:

Using half-duplex asynchronous serial communication. The default baud rate is 57600bps and can be set to 9600 ~ 115200bps by command.
The transmitted frame format is 10 bits, a 0-level start bit, 8-bit data (LSB first) and a stop bit without parity bit.

Power-up delay time:

After the module is powered on, it takes about 200mS to initialize. During this time, the module can not respond to the host command.

Electrical parameters (all levels referenced to power/ground GND):
1. Power input:

2.TXD (output, TTL logic level)

Package Includes :

1 x Fingerprint Recognition Module.

1 x Connecting Cable.
