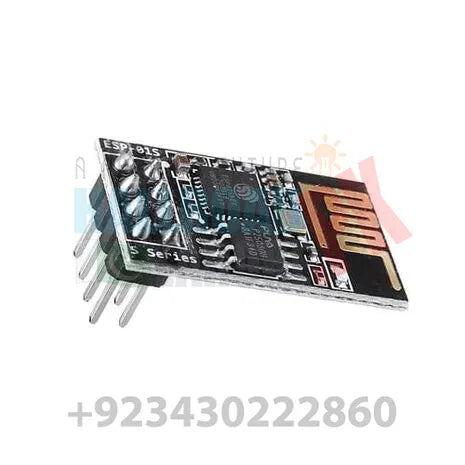

Best Online Shopping website for ESP8266EX ESP-01S Wifi Module In PakistanHere you get ESP8266EX ESP-01S Wifi Module In Pakistan in reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Multan, Quetta, Faisalabad and all over Pakistan.
ESP8266EX ESP-01S Wifi Module has a powerful enough on-board processing and storage capability. ESP8266EX ESP-01S Wifi Module, that allows it to be integrated with the sensors and other application-specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, including the front-end module, is designed to occupy minimal PCB area. The ESP8266EX supports APSD for VoIP applications and Bluetooth co-existence interfaces, it contains a self-calibrated RF allowing it to work under all operating conditions and requires no external RF parts.
We are also selling other wifi modules like MKR1000, ESP-8285, CP2102 etc.
Features of ESP8266EX ESP-01S Wifi Module:
802.11 b/g/n
Wi-Fi Direct (P2P), soft-AP
Integrated TCP/IP protocol stack
Integrated TR switch, balun, LNA, power amplifier and matching network
Integrated PLLs, regulators, DCXO and power management units
+19.5dBm output power in 802.11b mode
Power down leakage current of <10uA
1MB Flash Memory
Integrated low power 32-bit CPU could be used as an application processor
SDIO 1.1 / 2.0, SPI, UART
STBC, 1×1 MIMO, 2×1 MIMO
A-MPDU & A-MSDU aggregation & 0.4ms guard interval
Wake up and transmit packets in < 2ms
Standby power consumption of < 1.0mW (DTIM3)
Specifications of ESP8266EX ESP-01S Wifi Module:
Description
Min
Typical
Max
Units
Input Frequency
2412
2484
MHz
Input resistance
50
Ω
Input reflection
-10
dB
At 72.2Mbps, PA output power
14
15
16
dBm
11b mode, PA output power
17.5
18.5
19.5
dBm
Sensitivity
CCK, 1Mbps
-98
dBm
CCK, 11Mbps
-91
dBm
6Mbps (1/2 BPSK)
-93
dBm
54Mbps (3/4 64-QAM)
-75
dBm
HT20, MCS7 (65Mbps, 72.2Mbps)
-71
dBm
Adjacent suppression
OFDM, 6Mbps
37
dB
OFDM, 54Mbps
21
dB
HT20, MCS0
37
dB
HT20, MCS7
20
dB
Applications:
Smart Power Plug
Home Automation
Mesh network
industrial wireless control
Baby Monitor
Network Camera
Sensor networks
Wearable electronics
Wireless location-aware devices
Security ID tag
Wireless positioning system signals
Package Includes:
1 x ESP8266EX ESP-01S Wifi Module
