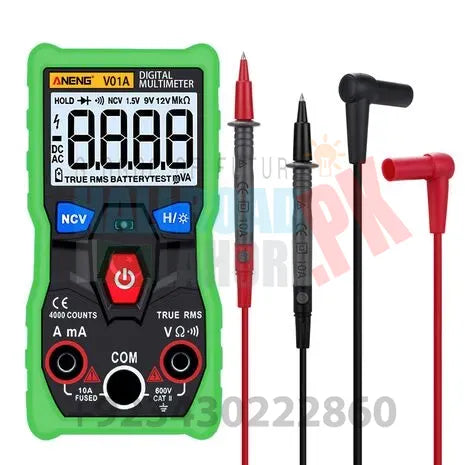

This product is a battery-powered, auto-ranging, true RMS digital multimeter with a 4000 counts LCD display.
General Specifications
Display
4000 counts
Ture RMS
√
Ranging
Auto
Data Hold
√
Material
ABS+PVC
Backlight
√
Update Rate
3 / s
Flashlight
√
Low Battery Indication
√
Auto Power Off
√
Electrical Specifications
Function
Range
Resolution
Accuracy
Max
DC VOLTAGE(V)
4.000V/40.00V
0.001V/0.01V
±(0.5 +3)
600V
400.0V/600V
0.1V
AC VOLTAGE(V)
4.000V/40.00V
0.001V/0.01V
±(1.0 +3
600V
400.0V/600V
0.1V/1V
AC mA
999.9mA
0.1mA
±(1.0 +3)
9.999A
AC A
9.999A
0.001A
±(1.0 +3)
9.999A
DC mA
999.9mA
0.1mA
±(2.0 +4)
9.999A
DC A
9.999A
0.001A
±(2.0 +4)
9.999A
Resistance
4.000kΩ
0.001kΩ
±(1.5 +3)
40MΩ
40.00kΩ/400.0kΩ
0.01kΩ/0.1kΩ
±(0.5 +3)
4.000MΩ
0.001MΩ
40.00MΩ
0.01MΩ
±(1.5 +3)
Continuity
√
NCV
√
Frequency response at AC modes
40Hz~1kHz
Battery
2 x AAA (not included)
Package Includes:
1 x Green Digital Multimeter
1 x Test leads
