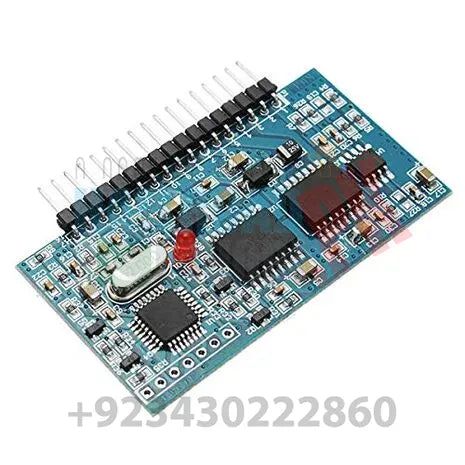

DC-AC 5V Pure Sine Wave Inverter SPWM Driver Board EGS002 Driver Module 12Mhz Crystal Oscillator CMOS RS232 Over-Voltage Under-Voltage Over-Current Over-Heating Protection - Arduino CoDescription: EG8010 is a digital, function very well bring their own dead-time control of pure sine wave inverter generator chip, used in two-stage DC-DC-AC power conversion structure or single-stage DC-AC power frequency transformer architecture, an external 12MHz crystal oscillator, to achieve high precision, and harmonic distortion is very small, 50Hz or 60Hz pure sine wave inverter ASIC. The chip uses CMOS technology, the internal integration of SPWM sine generator, dead-time control circuit, the multiplier factor range, soft start circuit, protection circuit, RS232 serial communication interface and a serial driver module 1602 functions.
Features:
5V single power supply
4 pin of pure sine wave output frequency: 50Hz pure sine wave of the fixed frequency of 60Hz pure sine wave of fixed frequency 0-100Hz; pure sine wave frequency adjustable 0-400Hz pure sine wave frequency adjustable
Unipolar and bipolar modulation
Comes with deadband control, pin 4 dead times: 300nS dead time 500nS dead time 1.0uS dead time 1.5uS dead time
External 12MHz crystal oscillator
PWM carrier frequency 23.4KHz
Voltage, current, real-time temperature feedback
Overvoltage, under voltage, overcurrent, and overheating protection
Soft-start mode pin setting the response time of 1S
Serial communication to the output voltage, frequency, and other parameters
External Serial Module 1602 displays the inverter
voltage, frequency, temperature and current information
Application:
Single-phase pure sine wave
inverter PV
inverter The power inverter Digital
uninterruptible power supply UPS
system Generator system
If the power
Single-phase motor speed controller - Phase
inverter
Sine wave dimmer Sine
wave regulator Sine
wave generator
Package Include:
1 x DC-AC 5V Pure Sine Wave Inverter SPWM Driver Board EGS002
