The D-subminiature or D-sub is a common type of electrical connector. They are named for their characteristic D-shaped metal shield. When they were introduced, D-subs were among the smallest connectors used on computer systems.Specifications:
Gender: Female
Pin Number: 15 pins
Row 3 rows
The orientation body: Right angle
Current Rate: 3 amps
Dielectric resistance voltage: ca 1000/60 seconds. RM
Insulation resistance: 1000 Megohms Min at 500VDC
Contact resistance: 25 Megohms max.
Insertion force: 340 grams maximum per contact pair
Withdrawal force: 21 Grams minimum per contact pair
Features:
Type: DB 15 Pin Female Plug; Connector(s) B: Solder Pin; Connector A: VGA/SVGA D-Sub Female
Connection Split/Duplication: None (1 : 1); Product Name: VGA Connector; Cable Length: Not Applicable
Package Include:

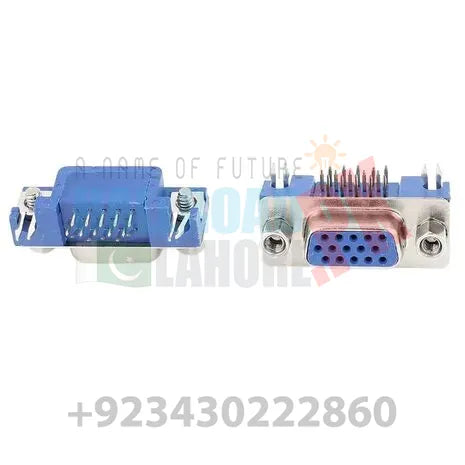

1XD-SUB 15 Pin Female Right Angle PCB Mounting VGA Connector
