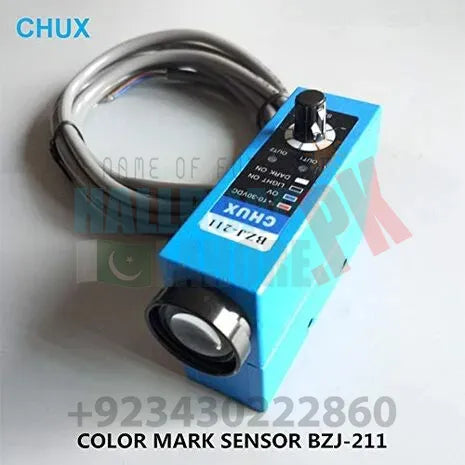

Overview of Color Mark Sensor (BZJ-211):BZJ-211 Color Mark Sensors Packing Machine Auto tracking/rectify deviation, Auto Detection Photoelectric Eyes Mark Switch
Color mark sensor
Design program:1,2......
Class to light path: 1. coaxial, 2. non coaxial
Class to light source: 1.single light source, 2. double light source
Color of light source: R: white, G: green
Class to logic: N-NPN, P-PNP
Specifications of Color Mark Sensor (BZJ-211):
Model number
BZJ-211 series
External dimensions
28x57x85
Sensing method
Coaxial reflex
Light source chromatogram
Red, green, blue, white
Light spot (color)
Round spot (green)
Load current
<200mA
Detection distance
10mm±2mm
Sensitivity adjustment
Adjustable
Supply voltage
10-30Vdc±10%
Rated output current
N.P Type: 300mA max; A Type: 400mA; J type: 2A max (contact life: 100000 times)
Sensing object
Opaque object
Response time
50uS
Light source
Infrared LED (660 nm)
Leakage current
N.P Type: 20mA max; A Type: 1.7mA max
Protection circuit
Reverse polarity protection, Surge suppressor, Short-circuit protection
Insulation resistance
50 MΩ min. at 500 V DC between energized parts and case
Dielectric strength
1000 VAC max., 50 / 60 Hz for 1 min between energized parts and case
Temperature influence
±10% max. of sensing distance at 23°C within temperature range of -25°C to 60°C
±15% max. of sensing distance at 23°C within temperature range of -30°C to 65°C
Voltage influence
±10% max. of sensing distance in rated voltage range ±15%
IP Rating
IP67
Material
Case: Aluminum die-cast (ABS); Sensing surface (lens): PMMA
Operating temperature
0 to 50 °C (with no icing or condensation)
Operating humidity
Storage: 35% to 95% (without condensation)
Wires and Pinout of Color Mark Sensor (BZJ-211):
BN : BROWN : +10-30VDC
BU: BLUE : -OV
BK: BLACK : switch signal output (NPN)
WH: WHITE: analog signal output (PNP)
Package Includes:
1 x Color Mark Sensor (BZJ-211)
