Description
The CD4016 is a quad bilateral switch intended for the transmission or multiplexing of analog or digital signals
Specifications:
VDD Supply Voltage: −0.5V to +18V
VIN Input Voltage: −0.5V to VDD + 0.5V
TS Storage Temperature Range: −65°C to + 150°C
Power Dissipation (PD): Dual-In-Line: 700 mW
Lead Temperature: 260°C
Applications:
Analog signal switching/multiplexing
Signal gating
Squelch control
Chopper
Modulator/Demodulator
Commutating switch
Digital signal switching/multiplexing
CMOS logic implementation
Analog-to-digital/digital-to-analog conversion
Digital control of frequency, impedance, phase, and analog-signal gain
CD4016 IC Datasheet

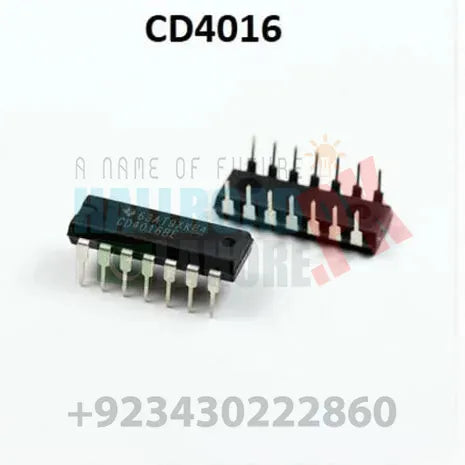

Cd4016 Quad Bilateral Analog Switch Ic
Rs.88
