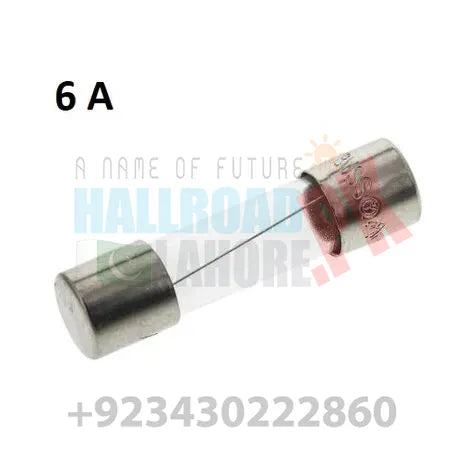

NEW, UNUSED, fresh out of the box. In electronics and electrical engineering, a fuse is an electrical safety device that operates to provide overcurrent protection of an electrical circuit. Its essential component is a metal wire or strip that melts when too much current flows through it, thereby interrupting the current.
Cartridge fuses are used to protect motors and branch circuits where higher amps or volt ratings are required. General Purpose fuses have no time-delay and protect fuse panels, appliances, and branch circuits.
Specifications:
Attribute
Value
Current Rating
6 A
Voltage Rating
250 V ac
Fuse Speed
F
Fuse Size
5 x 20mm
Diameter
5mm
Overall Length
20mm
Body Material
Glass
High Rupture Capacity
No
Breaking Capacity at Maximum Voltage Rating
35 A
Includes Indicator
No
Size Designation
Miniature
Maximum Operating Temperature
+125°C
Minimum Operating Temperature
-55°C
Resistance
50.2mΩ
Typical Application:
Cartridge fuses are a relatively cheap way of protecting electrical equipment from short circuits and overcurrent and can be used to protect electrical appliances such as motors air-conditions, refrigerator, pumps, etc. They can be found in the following areas:
Industrial
Commercial
Home/Residential
Automotive
