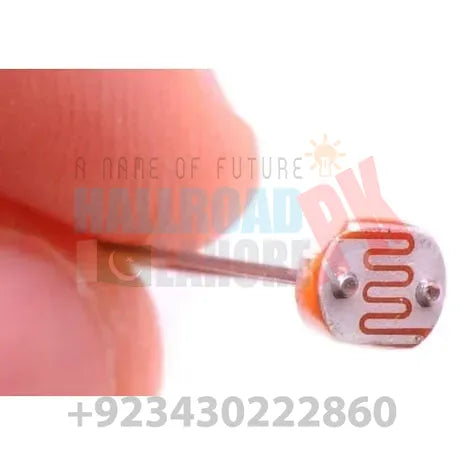

5mm Light Dependent Resistor LDR Sensor changes resistance with the change in the ambient light exposure on the surface of the sensor. 5mm LDR Sensor (Light Dependent Resistor) is a type of photocell which finds excellent use in light sensing device application, whether it is automatic outdoor light ON/OFF switch or Indoor automatic light switch. The sensor works best in both Light and dark region.Two Cadmium Sulphide (CDs) PhotoConductive Cells with spectral responses similar to that of the human eye. Cell resistance falls with increasing light intensity. An application includes smoke detection, Automatic lighting control, batch counting and burglar alarm systems.
Features of 5mm Light Dependent Resistor LDR Sensor:
Diameter: 5mm
No. of Pins: 2
Type of Mounting: PCB Through Hole
Maximum Operating Temperature: +800C (Approx.)
Dark resistance:1-20M ohm
Specifications of 5mm Light Dependent Resistor LDR Sensor:
Maximum Voltage (V-dc): 150V
Maximum Power Consumption (mW): 100W
Temperature (°C): -30 - +70
Spectrum Peak Value (nm): 540 OD
Bright Resistance (10Lux) (KΩ): < 45
Dark Resistance (MΩ): > 200
Light resistance: < 8 k
Dark resistance: > 20 megohm
100¦Ë10: 0.6
Response Time (ms): Up: 20/ Down: 30
Light Resistance Characteristic: 3
The length of the pins: > 2.5 CM/0.98"
Material: Carbon
Performance: General
Shape: cylindrical
Size: 5 x 3mm/0.2 x 0.12"
Analog Applications:
Camera Exposure control
Auto slide focus – dual cell
Photocopy machines – density of toner
Colorimetric Test Equipment
Densitometer
Electronics scales – dual cell
Automatic gain control – modulated light source
Automated Rear View Mirror
Digital Applications:
Automatic Headlight Dimmer
Nightlight control
Oil burner flame out
Streetlight control
Absence / Presence (Beam breaker)
Position sensor
Package Includes :
1 x 5mm Light Dependent Resistor LDR Sensor
