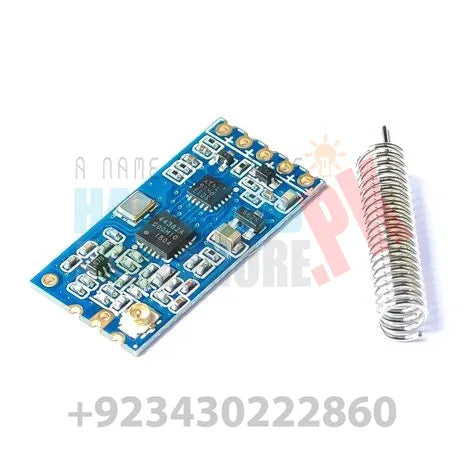

Original 433mhz Hc12 Hc-12 Si4463 Wireless Serial Port Module In Pakistan

Rs.1,519
SKU: 5820
Availability : In Stock Pre order Out of stock
People are viewing this right now
sold in last hours

Description

Features and Specifications:

  1. Supply voltage 3.2V ~ 5.5V. (If you want to work in the module launch state for a long time, it is recommended when the supply voltage exceeds 4.5V series with a 1N4007 diode, to avoid heating module built LDO)
  2. Default communication distance (open test): about 600m (adjustable to achieve the maximum communication distance of 1000m, the air baud rate 5000bps).
  3. The default idle current: 16MA (modules in different operating current of the different operating modes).
  4. Operating frequency range (433.4-473.0MHz, up to 100 communication channels) Maximum 100mW transmit power (can be set)
  5. Module Size: 27.8mm × 14.4mm × 4mm.
  6. The module supports software upgrades. (We provide customers with software upgrades)
  7. The default factory settings: operating mode FU3, baud rate 9600bps, communication channel
