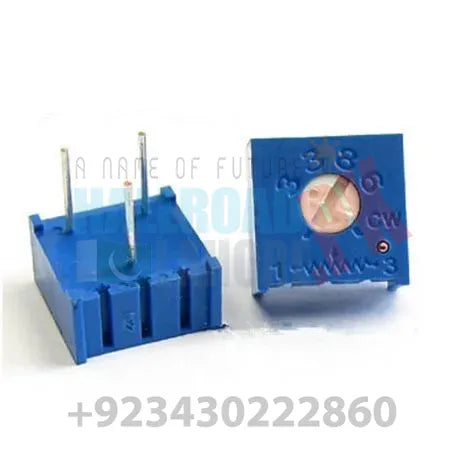

3386 Single Turn Variable Potentiometer Trimmer Resistor is a high accuracy variable resistor. Variable Potentiometer Trimmer Resistor, PCB mountable with 3 terminal pins. The voltage between the terminal varies as the trimpot is rotated. The Variable resistors are used for variating voltage as per the need in a circuit. The outer two pins are connected to Vcc and 0V, and centre pin outputs a variable voltage between 0 v and Vcc as the rotary cermet is rotated.Features of 3386 Single Turn Variable Potentiometer Trimmer Resistor:
Trimmer is a high accuracy variable resistor and PCB mountable with 3 terminal pins.
The voltage between the terminal varies as the trimpot is rotated.
The Variable resistors are used for variating voltage as per the need in a circuit.
The outer two pins are connected to Vcc and 0V, and centre pin outputs a variable voltage between 0 v and Vcc as the rotary cermet is rotated.
Specifications of 3386 Single Turn Variable Potentiometer Trimmer Resistor:
Track Resistance: Select Value
Resistance Tolerance: ± 5%
Temperature Coefficient: ± 50 ppm/°C
Potentiometer Mounting: Through Hole
Adjustment Type: Top
Contact Resistance Variation +: 1%
Full Power Rating Temperature: 85°C
Lead Diameter: 0.5mm
Operating Temperature Range: -55°C to +125°C
Resistance: 1K ohm, 2k ohm,5k ohm, 10k ohm, 20k ohm, 50k ohm, 100k ohm, 500k ohm, 1 Megohm
Resistor Element Material: Variable Rotary Trimmer
Applications:
Industrial
Consumer Electronics
Portable Devices
Power Management
Package Includes:
1 x 3386 Single Turn Variable Potentiometer Trimmer Resistor
