Description
Features:
Product Name
Slide Switch
Model
SS12D01
Type
1 Pole 2 Throw, 2 Position
Terminal Quantity
3 Pcs
Working Power
0.3A 50V DC
Contact Resistance
30mΩ Max
Insulation Resistance
100mΩ Min at 500V DC
Withstand Voltage
AC 500V for 1 min
Terminal Size(Each One)
3.3 x 0.5mm / 0.13" x 0.02"( L * W)
Pins Pitch
2.54mm / 0.1"
Main Body Size(not Include Knob & Pins)
8.6 x 4.4 x 4mm / 0.33" x 0.17" x 0.16"(L * W* H)
Switch Total Size
8.6 x 4.4 x 12.2mm / 0.33" x 0.17" x 0.48"(L * W* H)
Knob Size
2 x 2 x 5.3mm / 0.07" x 0.07" x 0.2"(L * W * H)
Material(External)
Plastic, Metal
Main Color
Silver Tone, Black
Weight
9g
Package Includes:
3 Pin switch

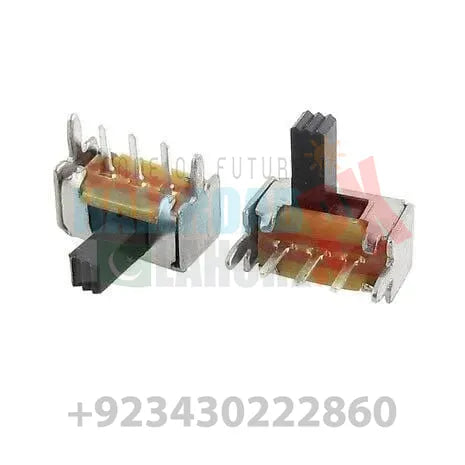

3 Pin 2 Position Panel Mount Micro Vertical Spdt Slide Switch High Knob
Rs.9
