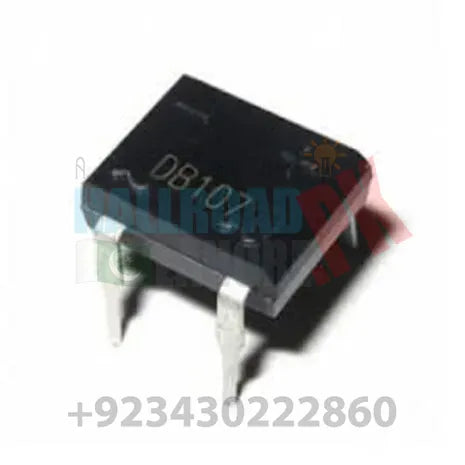

DB107 1Amp 1000V Bridge Rectifier Diode IC is an arrangement of four diodes in a bridge circuit configuration. DB107 1Amp 1000V Bridge Rectifier Diode IC, that provides the same polarity of output for either polarity of input. When used in its most common application, for conversion of an alternating-current (AC) input into a direct-current (DC) output, it is known as a bridge rectifier. A bridge rectifier provides full-wave rectification from a two-wire AC input, resulting in lower cost and weight as compared to a rectifier with a 3-wire input from a transformer with a centre-tapped secondary winding.Features of DB107 1Amp 1000V Bridge Rectifier Diode IC:
Good for automation insertion
Surge overload rating – 40 amperes peak
Ideal for printed circuit board
Reliable low-cost construction utilizing moulded
Glass passivated device
Polarity symbols moulded on the body
Mounting position: Any
Weight: 1.0 gram
Specifications of DB107 1Amp 1000V Bridge Rectifier Diode IC:
Bridge Type
Single Phase
Peak Average Forward Current
1A
Peak Reverse Repetitive Voltage
1000V
Mounting Type
Through Hole
Package Type
DB
Pin Count
4
Configuration
Single
Maximum Operating Temperature
150°C
Minimum Operating Temperature
-55°C
Peak Forward Voltage
1.1V
Peak Reverse Current
500A
Lenght
8.8mm
Height
3.4mm
Junction Capacitance
25pF
Width
6.5mm
Dimensions
8.8 x 6.5 x 3.4mm
Package Includes:
1 x DB107 1Amp 1000V Bridge Rectifier Diode IC
